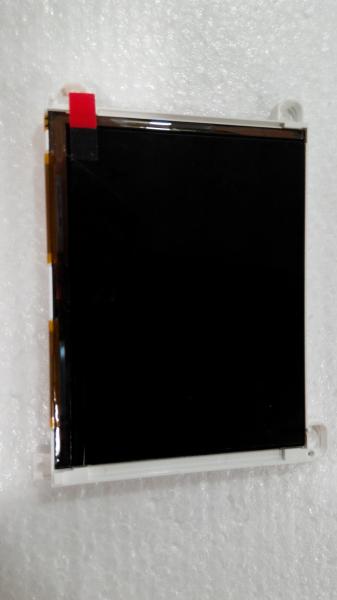

TM050JDZG41 TIANMA 5.0" 720(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TM050JDZG41
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	1000PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

TM050JDZG41 TIANMA 5.0" 720(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY

TIANMA TM050JDZG41 Application Details

Basic Detail :	Manufacturer		Model Name	TM050JDZG41
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	5.0 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	Vibration Level	-	RoHS
Features :

TIANMA TM050JDZG41 Optical Details

Basic Information :	Luminance	350 cd/m² (Typ.)	Contrast Ratio	800 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	25 (Typ.)(Tr+Td) (ms)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	SFT, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.303; Wy:0.319	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	7176K	White Uniformity	1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	71%	sRGB	93% coverage
	Adobe RGB	71% coverage	DCI-P3	73% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM050JDZG41 Mechanical Details

Pixel Features :	Number of Pixel	720(RGB)×1280 [WXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.02875×0.08625 mm	Pixel Pitch(W×H)	0.08625×0.08625 mm [294PPI]
Physical Size :	Active Viewing	62.1(W)×110.4(H) mm	Overall Dim.	64.9(W)×118.95(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	1.9 (Typ.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Portrait type
Outline Features :	Aspect Ratio(W:H)	9:16	Shape Style
Other Detail :	Mass	TBD	Surface	Hard coating

TIANMA TM050JDZG41 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Driver IC :	COG Built-in ILI9881C

TIANMA TM050JDZG41 Interface Details

Signal Electrical :	Input Current	TBD		Input Voltage	1.8/2.8V (Typ.)(VDDI/AVDD)
Signal Electrical :	Consumption	TBD	Signal Interface	MIPI (4 data lanes)
Interface Features :	Position	-	Physical Type	FPC
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :			1 pcs	0.3 mm	25 pins

TIANMA TM050JDZG41 Lightting Details

Lamp Features:	Lamp Shape	Array	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	6S2P	Life	20K(Typ.) (Hours)
Lamp Electrical :	Input Current	40/50mA (Typ./Max.)		Input Voltage	19.2±1.2V
Lamp Electrical :	Consumption	768mW (Typ.)
Interface Features :	Position	-	Physical Type	Included in panel signal interface
Backlight Driver :	No

TIANMA TM050JDZG41 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	108 pcs / box	395×290×315 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
