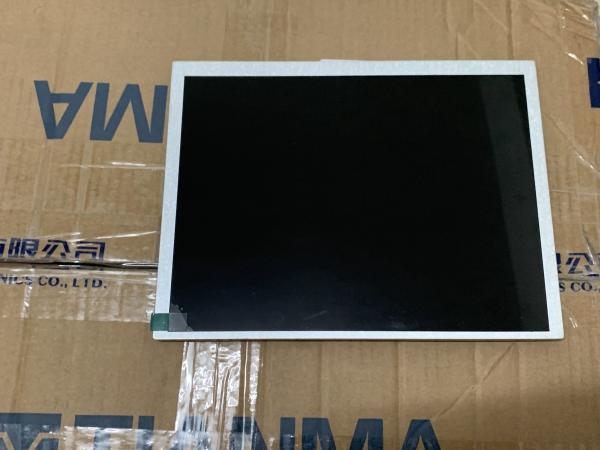

TM104TDGP10 TIANMA 10.4" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TM104TDGP10
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	1500PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

TM104TDGP10 TIANMA 10.4" 1024(RGB)×768 450 cd/m² INDUSTRIAL LCD DISPLAY

TIANMA TM104TDGP10 Application Details

Basic Info :	Panel Brand		Panel Model	TM104TDGP10
	Diagonal Size	10.4"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-30 ~ 80 °C
Reliability :	RoHS State		Vibration Rating	-
Specific Features :

TIANMA TM104TDGP10 Mechanical Details

Pixel Features :	Pixel Format	1024(RGB)×768 [XGA]	Dot Pitch	0.0685×0.2055 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.2055×0.2055 mm (H×V) [123PPI]
Mechanical Size :	Display Area	210.432×157.824 mm (H×V)	Bezel Area	213.43×160.82 mm (H×V)
Mechanical Size :	Outline Dim.	230×175.8 mm (H×V)	Outline Depth	5.7/9.06 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	430g (Typ.)	Surface	Antiglare

TIANMA TM104TDGP10 Optical Details

Basic Information :	Brightness	450 cd/m² (Typ.)	Contrast Ratio	1200:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Optical Mode	SFT, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	35 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.308; Wy:0.332	Color Numbers	262K/16.7M (6-bit / 8-bit)
Color Performance :	Color Temperature	6727K	White Uniformity	1.18/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	56%	sRGB	78% coverage
	Adobe RGB	59% coverage	DCI-P3	58% coverage
	Rec.2020	42% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM104TDGP10 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	Yes (180°)
D-IC Detail :	COG Built-in RM51150 + RM76870*2

TIANMA TM104TDGP10 Backlight Details

Back-light Features:	Lamp Shape	Array	Lamp Type	WLED	Life Time	-
Back-light Features:	Replacement	-	Amount	8S4P	Position	Edge light type
Interface Features :	Type	Connector	Position	-	Lamp Driver	With LED Driver
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	E&T	3808K-F05N-03R	1.25 mm	5 pins	1 pcs
Driver Electrical :	Voltage Input	12±1.0V		Current Input	0.33A (Typ.)
Driver Electrical :	Consumption	3.96W (Typ.)

TIANMA TM104TDGP10 Interface Details

Signal Systerm :	LVDS (1 ch, 6/8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	430mA (Typ.)
Signal Electrical :	Consumption	1.42W (Typ.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	STARCONN	107A20-0021RA-G3-R	1.0 mm	20 pins	1 pcs	LVDS-20P1C8B-080C

TIANMA TM104TDGP10 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	18 pcs / box	12.75±0.64 Kgs	544×365×250 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
