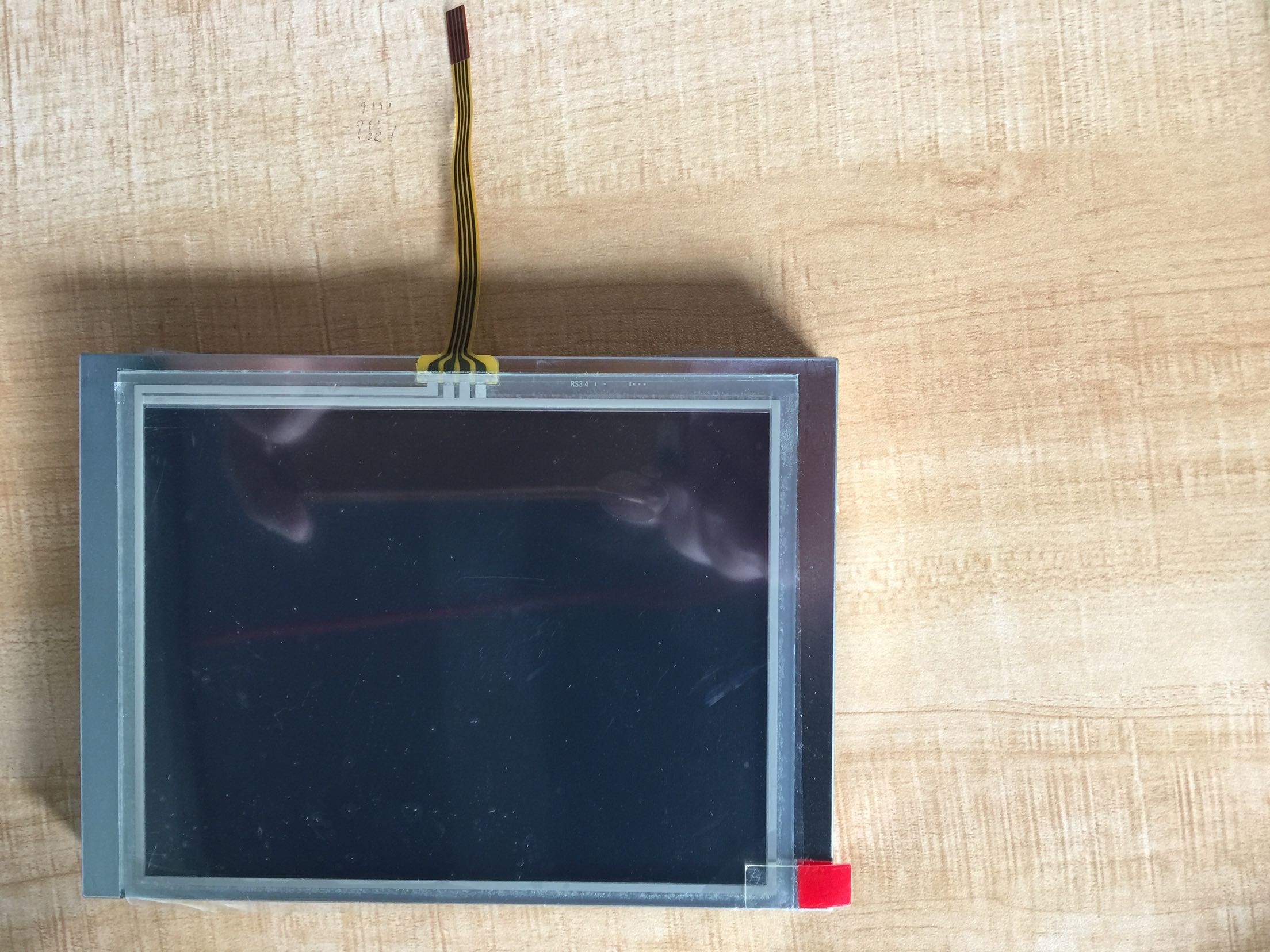

TM057KBHG01 TIANMA 5.7" 320(RGB)×240 320 cd/m² INDUSTRIAL LCD DISPLAY

TIANMA TM057KBHG01 Application Details

Basic Info :	Panel Brand		Panel Model	TM057KBHG01
	Diagonal Size	5.7"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-30 ~ 80 °C
Reliability :	RoHS State		Vibration Rating	-
Specific Features :

TIANMA TM057KBHG01 Mechanical Details

Pixel Features :	Pixel Format	320(RGB)×240 [QVGA]	Dot Pitch	0.120×0.360 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :	Display Area	115.2×86.4 mm (H×V)	Bezel Area	117.6×88.8 mm (H×V)
Mechanical Size :	Outline Dim.	144×104.6 mm (H×V)	Outline Depth	14.0 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Touch Screen :	Touch Points	-	TP Signal	-
Touch Screen :	TP Controller	Without touch controller	Touchscreen	4-wire Resistive Touch
Holes & Brackets :	Rear mounting poles (4-Φ2.6)
Other Features :	Weight	TBD	Surface	Antiglare, Hard coating (3H)

TIANMA TM057KBHG01 Optical Details

Basic Information :	Brightness	320 cd/m² (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Viewing Angle	70/70/60/70 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	6 o'clock	Response Time	20 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.320; Wy:0.360	Color Numbers	262K (6-bit)
Color Performance :	Color Temperature	5983K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	53%	sRGB	73% coverage
	Adobe RGB	56% coverage	DCI-P3	55% coverage
	Rec.2020	40% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM057KBHG01 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	Yes (U/D, L/R)

TIANMA TM057KBHG01 Backlight Details

Back-light Features:	Lamp Shape	3 strings	Lamp Type	WLED	Life Time	50K(Typ.) (Hours)
Back-light Features:	Replacement	-	Amount	5S3P	Position	Edge light type
Lamp Electrical :	Voltage Input	14.85/18.15V (Min./Max.)		Current Input	25mA (Typ.)
Lamp Electrical :	Consumption	1.238mW (Typ.)
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	No

TIANMA TM057KBHG01 Interface Details

Signal Systerm :	Parallel RGB (1 ch, 6-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	110mA (Typ.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	STARCONN	089H33-000100-G2-R	0.5 mm	33 pins	1 pcs	DRGB-33P1C6B-020B

TIANMA TM057KBHG01 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	40 pcs / box	TBD	530×350×250 mm
