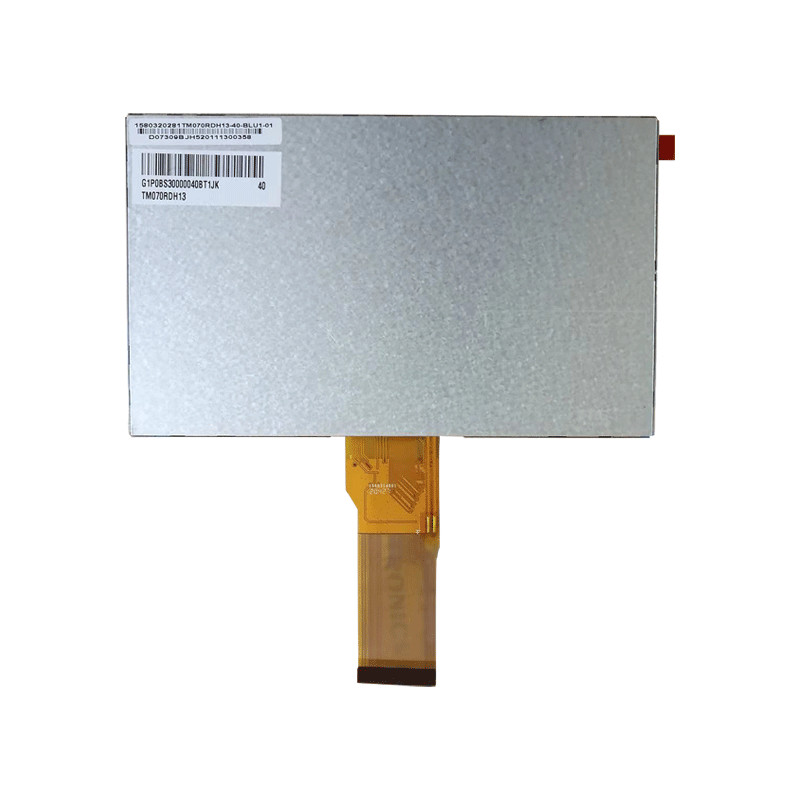

TM070RDHG34 TIANMA 7.0" 800(RGB)×480 1000 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

TM070RDHG34 TIANMA 7.0" 800(RGB)×480 1000 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TM070RDHG34
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	1000PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

TM070RDHG34 TIANMA 7.0" 800(RGB)×480 1000 cd/m² INDUSTRIAL LCD DISPLAY

TIANMA TM070RDHG34 Application Details

Basic Information :	Brand		Model	TM070RDHG34
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	7.0"	Alias	-
Environment :	Storage Temp.	-40 ~~ 90 °C	Operating Temp.	-30 ~~ 85 °C
Environment :	RoHS		Vibration	6.8G (66.64 m/s²)
Typical Features :

TIANMA TM070RDHG34 Mechanical Details

Pixel Features :	Resolution	800(RGB)×480, WVGA	Dot Pitch(mm)	0.0642×0.1790 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.1926×0.1790 (H×V) [134PPI]
Mechanical Size :	Active Area(mm)	154.08(H) × 85.92(V)	Bezel Area(mm)	157.08(H) × 89.39(V)
Mechanical Size :	Outline Dim.(mm)	164.9(H) × 100(V)	Depth(mm)	5.7±0.3
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Without
Other Spec :	Weight	TBD	Treatment	Antiglare

TIANMA TM070RDHG34 Optical Details

Basic Information :	Luminance(cd/m²)	1000 (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	70/70/60/70 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	6 o'clock	Response(ms)	25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	-	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	-	White Uniformity	1.33/1.43 (Typ./Max.)(9 points)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmissivity

TIANMA TM070RDHG34 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Driver IC :	COG Built-in HX8264D + HX8664B
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM070RDHG34 Interface Details

Signal Electrical :	Voltage Supply	3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)		Current Supply	8/20/0.2/0.2mA (Typ.)(ICC/AIDD/IGH/IGL)
Signal Electrical :	Consumption	250/400mW (Typ./Max.)
Signal Type :	Parallel RGB (1 ch, 8-bit)			Signal Voltage	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position	-		Type	FPC
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :			1 pcs	50 pins	0.5 mm

TIANMA TM070RDHG34 Backlight Details

Backlight Features:	Shape	Array	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	3S8P	Life Time	50K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply	9.6/10.8V (Typ./Max.)		Current Supply	200mA (Typ.)
Lamp Electrical :	Consumption	1.92W (Typ.)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	No

TIANMA TM070RDHG34 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	50 pcs / box	-	530×350×250 mm (L×W×H)
