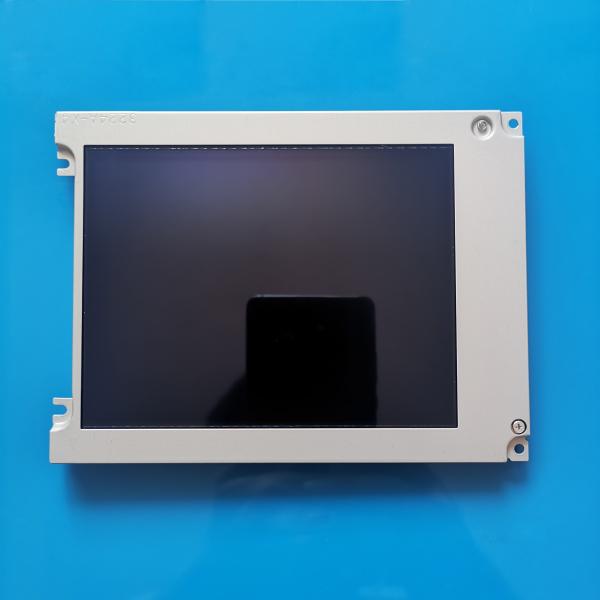

    KCS057QV1AJ-G20 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : KCS057QV1AJ-G20
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 100PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    KCS057QV1AJ-G20 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

    Kyocera KCS057QV1AJ-G20 Application Details

    Basic Information :
    Brand

    KCS057QV1AJ-G20Model
    Type
    CSTN-LCD , LCM
    Used For

    5.7 inchScreen Size
    Alias
    -
    Environment :
    Storage Temp.
    -20 ~ 60 °C
    Operating Temp.
    0 ~ 60 °C
    RoHS

    -Vibration

    Kyocera KCS057QV1AJ-G20 Mechanical Details

    Pixel Features :
    Resolution
    320(RGB)×240, QVGA
    Dot Pitch(mm)
    0.120×0.360 (H×V)
    Pixel Format
    RGB Vertical Stripe
    Pixel Pitch(mm)
    0.360×0.360 (H×V) [70PPI]
    Mechanical Size :
    Active Area(mm)
    115.2(H) × 86.4(V)
    Bezel Area(mm)
    120.2(H) × 91.4(V)
    Outline Dim.(mm)
    154.6(H) × 114.8(V)
    Depth(mm)
    8.5±0.5
    Outline Features :
    Form Style
    Flat Rectangle
    Shape Style
    Aspect Ratio
    4:3 (H:V)
    Orientation
    Landscape type
    Mounting :
    Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel
    Other Spec :
    Weight
    200g (Typ.)
    Treatment
    Glare (Haze 0%)

    Kyocera KCS057QV1AJ-G20 Optical Details

    Basic Information :
    Luminance(cd/m²)
    200 (Typ.)
    Contrast Ratio
    40:1 (Typ.) (Transmissive)
    Viewing Angle
    50/50/30/30 (Typ.)(CR≥2)
    Display Mode
    STN, Normally Black, Transmissive
    Best View on
    -
    Response(ms)
    220/110 (Typ.)(Tr/Td)
    Color Performance :
    White Coordinate
    -
    Display Colors
    Color

    Kyocera KCS057QV1AJ-G20 Electronics Details

    Frame Rate :
    75Hz
    Reverse Scan :
    No
    Driving Method :
    Duty: 1/240

    Kyocera KCS057QV1AJ-G20 Interface Detail

    Signal Electrical :
    Voltage Supply
    5.0V (Typ.)
    Current Supply
    3.0/4.5mA (Typ./Max.)
    Consumption
    180/282mW (Typ./Max.)
    Signal Type :
    Parallel Data (8-bit)
    Logic Voltage
    -
    Interface Features :
    Position
    -
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Quantity
    Pin Configuration
    molex
    51021-1500
    1.25 mm
    15 pins
    1 pcs

    Kyocera KCS057QV1AJ-G20 Backlight Details

    Backlight Features :
    Type
    CCFL
    Quantity
    1 pcs
    Position
    Edge light type (Bottom side)
    Replacement
    Replaceable
    Shape
    -
    Life Time
    40K(Typ.) (Hours)
    Lamp Electrical :
    Voltage Supply
    315V (Typ.)
    Current Supply
    2.0/5.0/6.0mA (Min./Typ./Max.)
    Frequency
    30/100KHz (Min./Max.)
    Startup Voltage
    510/770V (Max.)(Ta=+25/0℃)
    Consumption
    1.6W (Typ.)
    Interface Features :
    Position
    -
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Quantity
    Pin Configuration
    JST
    BHR-03VS-1
    4.0 mm
    3 pins
    1 pcs
    BLL-3PINS-HNL
    Backlight Driver :
    Optional


    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


    KCS057QV1AJ-G20 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAYKCS057QV1AJ-G20 Kyocera 5.7INCH LCM 320×240RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY
