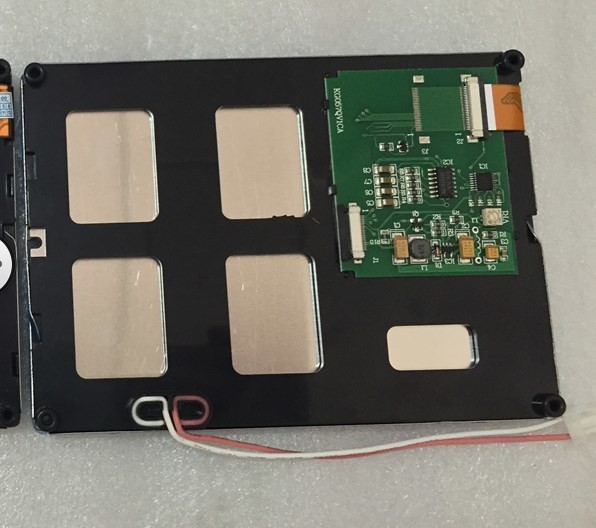

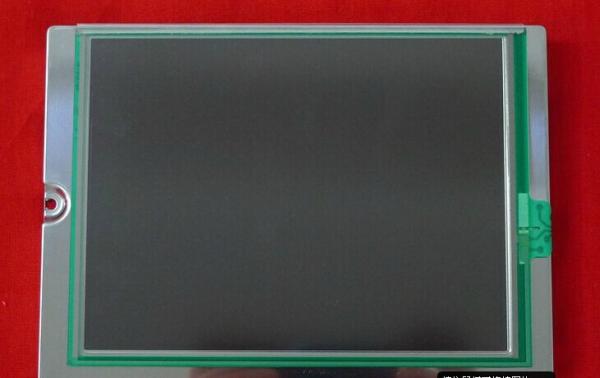

    KCG057QV1DC-G50 Kyocera 5.7INCH LCM 320×240RGB 280NITS CCFL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : KCG057QV1DC-G50
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 50PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    KCG057QV1DC-G50 Kyocera 5.7INCH LCM 320×240RGB 280NITS CCFL INDUSTRIAL LCD DISPLAY

    Kyocera KCG057QV1DC-G50 Application Details

    Basic Info；Panel BrandTypeModel Alias
    KCG057QV1DC-G50CSTN-LCD , LCM-
    Maximum Ratings :RoHSOperating TemperatureStorage TemperatureVibration Level
    0 ~ 60 °C-20 ~ 60 °C

    Kyocera KCG057QV1DC-G50 Mechanical Features

    Screen Size :5.7"
    Pixel Features :Pixel NumberPixel FormatDot Pitch (H×V)Pixel Pitch (H×V)
    320(RGB)×240, QVGARGB Vertical Stripe0.120×0.360 mm0.360×0.360 mm [70PPI]
    Mechanical Size :Display Area (H×V)Bezel Opening (H×V)Overall Dimension (H×V)Overall Depth
    115.2×86.4 mm119.4×90.6 mm144×104.8 mm10.8/15.3 (Typ./Max.) mm
    Outline Features :Form ShapeAspect Ratio (H:V)OrientationShape Style
    Flat Rectangle4:3Landscape type
    Touch Panel :Touch PointsSignal TypeControllerTechnology
    1 point-Without touch controller4-wire Resistive Touch
    Other Spec :MassPanel CoverSurface Treatment
    220g (Typ.)-Antiglare, Hard coating (2H)
    Holes & Brackets :Rear mounting poles (4-Φ2.6)

    Kyocera KCG057QV1DC-G50 Optical Features

    Basic Information :LuminanceWork ModeContrast Ratio
    280 cd/m² (Typ.)STN, Normally Black, Transmissive55:1 (Typ.) (Transmissive)
    Good View atViewing AngleResponse Time
    -50/50/20/35 (Typ.)(CR≥2)180/170 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color Temperature:Support ColorColor Coordinate
    7732KColorX:0.300; Y:0.300
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    38%52%39%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    39%28%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera KCG057QV1DC-G50 Electronics Features

    Refresh Rate :75Hz
    Reverse Scan :No
    Driving Method :Duty: 1/240

    Kyocera KCG057QV1DC-G50 Backlight Features

    Back-light Features:TypePositionLife(Hours)AmountShapeReplacement
    CCFLEdge light type75K(Typ.)1 pcsU shape-
    CCFL Electrical :Input VoltageInput CurrentPower Consumption
    685V (Typ.)3.0/4.0/6.0mA (Min./Typ./Max.)
    Operating FrequencyStartup Voltage
    30/100KHz (Min./Max.)1035/1550V Max.)(Ta=+25/0℃)
    Interface Features :CCFL Driver StatePhysical TypeInterface Position
    OptionalConnector-
    Interface DetailBrand NameModel NameAmountPinsPin PitchPin Configuration
    JSTBHR-03VS-11 pcs3 pins4.0 mmBLL-3PINS-HNL

      Kyocera KCG057QV1DC-G50 Interface Features

      Signal Electrical :Input VoltageInput CurrentPower Consumption
      3.3/5.0V (Typ.)(VDD)40.5/27.0mA (Typ.)(3.3V/5.0V)(IDD)-
      Interface Features :Signal TypePhysical TypeInterface Position
      Parallel Data (8-bit)Connector-
      Interface Detail :Brand NameModel NameAmountPinsPin PitchPin Configuration
      Kyocera Elco08-6210-020-340-800+1 pcs20 pins0.5 mmPD-20P1C8B-010A

        FAQ:
        Q1: What's the quality of your LCD Panel?
        A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
        Q2: What is your return and refund policy?
        A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
        Q3: How long is the lead time?
        A: The lead time is about 1-3 working days after receipt of payment.
        Q4: How can I get the quotation?
        A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


        KCG057QV1DC-G50 Kyocera 5.7INCH LCM 320×240RGB 280NITS CCFL INDUSTRIAL LCD DISPLAYKCG057QV1DC-G50 Kyocera 5.7INCH LCM 320×240RGB 280NITS CCFL INDUSTRIAL LCD DISPLAY
