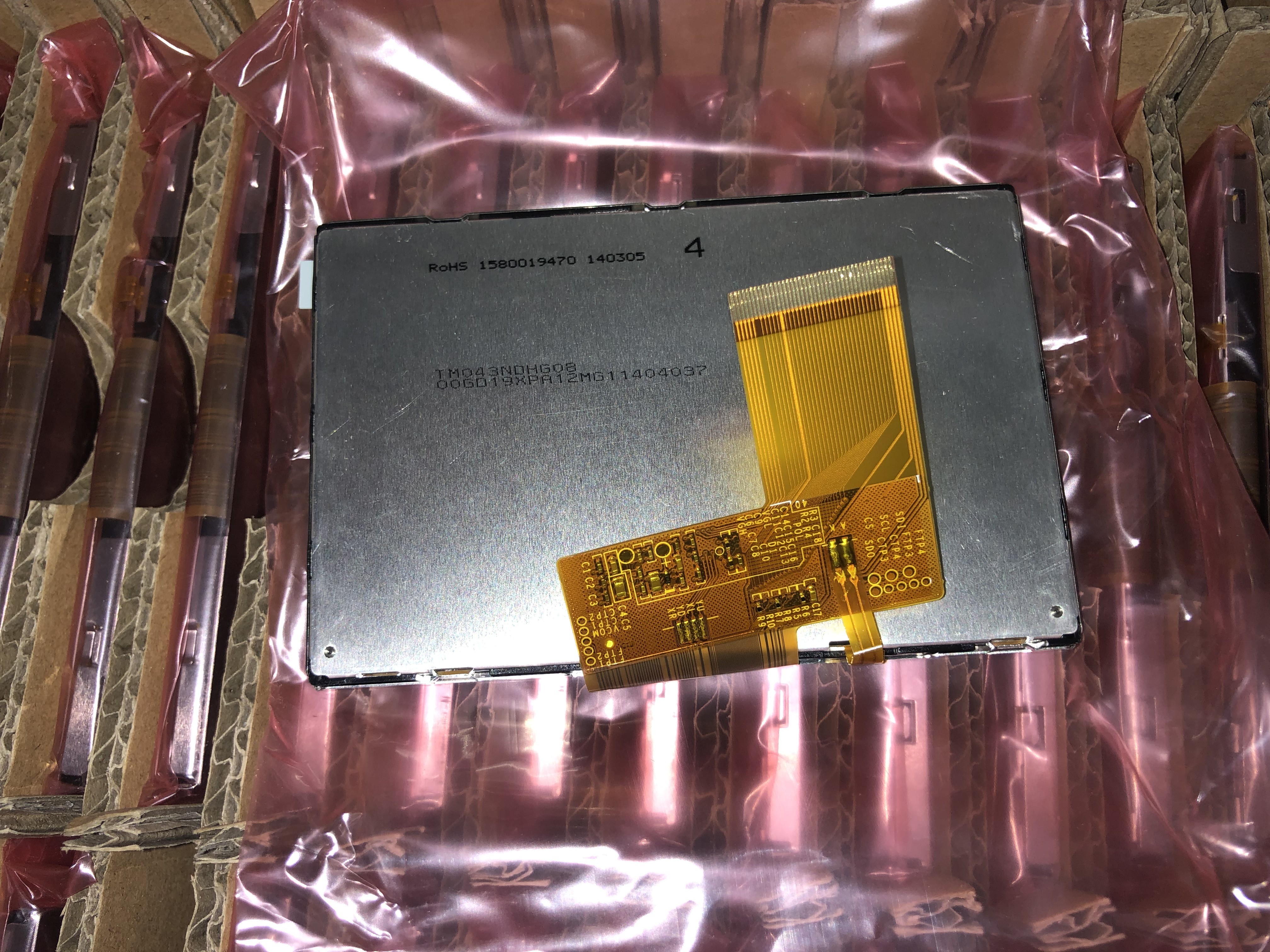

WQVGA 128PPI 480×272 RGB Tianma LCD Panel TM043NDHG08 70/70/70/60 (Typ.)(CR≥10)

TIANMA TM043NDHG08 Optical Details

Basic Information :	Luminance	450 cd/m² (Typ.)	Contrast Ratio	500 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	20 (Typ.)(Tr+Td) (ms)
	Viewing Angle	70/70/70/60 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.315; Wy:0.335	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	6337K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	50%	sRGB	70% coverage
	Adobe RGB	53% coverage	DCI-P3	52% coverage
	Rec.2020	38% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM043NDHG08 Mechanical Details

Pixel Features :	Number of Pixel	480(RGB)×272 [WQVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.066×0.198 mm	Pixel Pitch(W×H)	0.198×0.198 mm [128PPI]
Physical Size :	Active Viewing	95.04(W)×53.856(H) mm	Overall Dim.	105.9(W)×69.5(H) mm
Physical Size :	Bezel Opening	99.6(W)×56.7(H) mm	Overall Depth	5.46±0.3 mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style
Fixation :	Without
Other Detail :	Mass	60.0g (Typ.)	Surface	Antiglare

TIANMA TM043NDHG08 Interface Details

Signal Electrical :	Input Current	TBD		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	74.0mW (Typ.)	Signal Interface	Parallel RGB (1 ch, 8-bit)
Logic Voltage for Signals :	0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :	Position	-	Physical Type	FPC
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :			1 pcs	0.5 mm	40 pins

with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM043NDHG08 can provides 500:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of TM043NDHG08 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with TIANMA or it's distributor.
