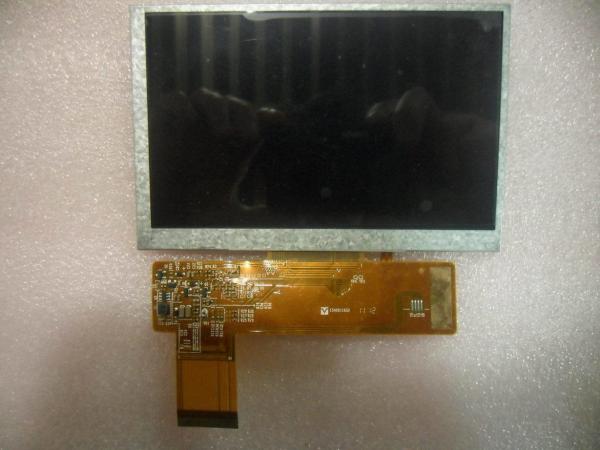

5.0" 800×480 RGB 250nits Tianma Tft Display TM050RDH05 TIANMA

TIANMA TM050RDH05 Summary

Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM050RDH05 is a 5.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Panelook in the following: WLED Backlight, Matte . Based on its features, Panelook recommend that this model be applied to Portable Navigation, MID UMPC, MP3 PMP etc. According to the information stored in Panelook this model mass production on Q1, 2011, Now this model is discontinued. There are 1 items stock and 0 suppliers of this model on Panelook. We inputted this model's specification on Aug 28 2012 for the first time, and the latest update on Sep 7 2023. If you want to embed TM050RDH05 LCM in your future product, Panelook strongly recommend that you should contact with TIANMA or it's distributor to learn lateast production and specification detail. The TM050RDH05 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is right.

TIANMA TM050RDH05 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	250 cd/m² (Typ.)	TN, Normally White, Transmissive	600:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	6 o'clock	70/70/50/70 (Typ.)(CR≥10)	20 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6638K	16.7M (8-bit)	X:0.310; Y:0.330
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	49%	69%	52%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	51%	37%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.25/1.33 (Typ./Max.)(9 points)

TIANMA TM050RDH05 Mechanical Features

Screen Size :	5.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	800(RGB)×480, WVGA	RGB Vertical Stripe	0.045×0.135 mm	0.135×0.135 mm [188PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	108×64.8 mm	111.1×67.9 mm	118.5×77.55 mm	3.4±0.3 mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	15:9	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	TBD	-	Antiglare, Hard coating (3H)

TIANMA TM050RDH05 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	20K(Min.)	7S2P	Array	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	21.7V (Typ.)		40mA (Typ.)			868mW (Typ.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Included in signal interface		-
