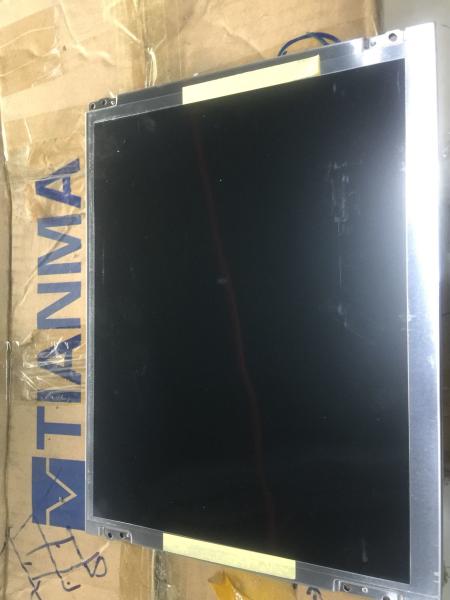

    SVGA 82PPI 12.1" 800×600 RGB Tianma TFT LVDS TM121SDSG03 80/80/65/75 (Typ.)(CR≥10)

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM121SDSG03
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 100PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    SVGA 82PPI 12.1" 800×600 RGB Tianma TFT LVDS TM121SDSG03 80/80/65/75 (Typ.)(CR≥10)

    TIANMA TM121SDSG03 Application Details

    Basic Information :
    Brand
    Model
    TM121SDSG03
    Type
    a-Si TFT-LCD , LCM
    Used For
    Screen Size
    12.1 inch
    Alias
    -
    Environment :
    Storage Temp.
    -30 ~ 80 °C
    Operating Temp.
    -20 ~ 70 °C
    RoHS
    Vibration
    -
    Typical Features :




    TIANMA TM121SDSG03 Mechanical Details

    Pixel Features :
    Resolution
    800(RGB)×600, SVGA
    Dot Pitch(mm)
    0.1025×0.3075 (H×V)
    Pixel Format
    RGB Vertical Stripe
    Pixel Pitch(mm)
    0.3075×0.3075 (H×V) [82PPI]
    Mechanical Size :
    Active Area(mm)
    246(H) × 184.5(V)
    Bezel Area(mm)
    -
    Outline Features :
    Form Style
    Flat Rectangle
    Shape Style
    Aspect Ratio
    4:3 (H:V)
    Orientation
    Landscape type

    TIANMA TM121SDSG03 Optical Details

    Basic Information :
    Luminance(cd/m²)
    -
    Contrast Ratio
    700:1 (Typ.) (Transmissive)
    Viewing Angle
    80/80/65/75 (Typ.)(CR≥10)
    Display Mode
    TN, Normally White, Transmissive
    Best View on
    -
    Response(ms)
    35 (Typ.)(Tr+Td)
    Color Performance :
    White Coordinate
    -
    Display Colors
    262K/16.7M (6-bit / 8-bit)
    Color Temperature
    -
    White Uniformity
    1.25/1.33 (Typ./Max.)(9 points)

    TIANMA TM121SDSG03 Electronics Details

    Frame Rate :
    60Hz
    Reverse Scan :
    Yes (180°)

    TIANMA TM121SDSG03 Interface Detail

    Signal Electrical :
    Voltage Supply
    3.3V (Typ.)
    Current Supply
    -
    Signal Type :
    LVDS (1 ch, 6/8-bit)
    Logic Voltage
    -
    Interface Features :
    Position
    -
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Quantity
    Pin Configuration
    STM
    MSB240420HE
    1.25 mm
    20 pins
    1 pcs

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
