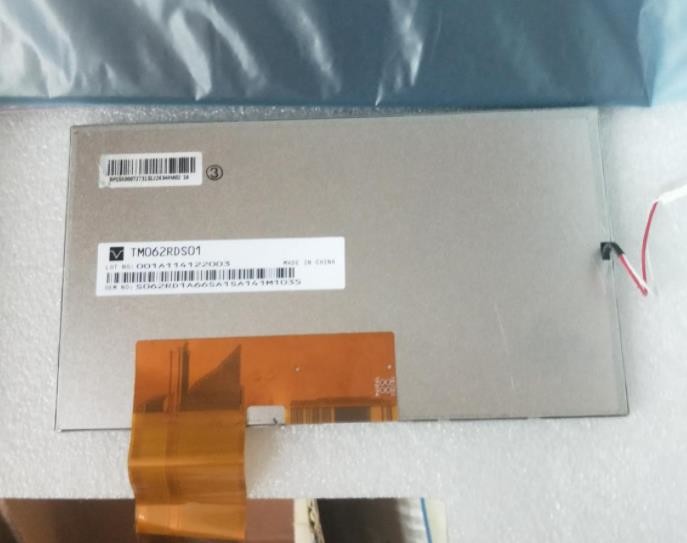

TM062RDS01 6.2" 400nits Tianma TFT Screen RGB 800×480 75/75/60/70 (Typ.)(CR≥10)

TIANMA TM062RDS01 Application Details

Basic Information :	Brand Model TM062RDS01 Type a-Si TFT-LCD , LCM Used For Screen Size 6.2 inch Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS Vibration -
Typical Features :

TIANMA TM062RDS01 Mechanical Details

Pixel Features :	Resolution 800(RGB)×480, WVGA Dot Pitch(mm) 0.05725×0.161 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.17175×0.161 (H×V) [150PPI]
Mechanical Size :	Active Area(mm) 137.4(H) × 77.28(V) Bezel Area(mm) 138.4(H) × 78.28(V) Outline Dim.(mm) 155.2(H) × 88.2(V) Depth(mm) 4.9±0.3
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 16:9 (H:V) Orientation Landscape type
Other Spec :	Weight 118g Treatment Antiglare

TIANMA TM062RDS01 Optical Details

Basic Information :	Luminance(cd/m²) 400 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 75/75/60/70 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 12 o'clock Response(ms) 20 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.306; Wy:0.323 Display Colors 262K/16.7M (6-bit / 6-bit + Hi-FRC) Color Temperature 6939K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 50% sRGB 70% coverage Adobe RGB 52% coverage DCI-P3 52% coverage Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM062RDS01 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Driver IC :	Built-in HX8664-B + HX8264-D
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM062RDS01 Interface Detail

Signal Electrical :	Voltage Supply 3.3/10.5/20.0/-7V (Typ.)(VCC/AVDD/VGH/VGL) Current Supply - Consumption 355mW (Typ.)
Signal Type :	Parallel RGB (1 ch, 6/8-bit) Logic Voltage 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration 0.5 mm 60 pins 1 pcs

TIANMA TM062RDS01 Backlight Details

Backlight Features :	Type WLED Quantity 3S8P Position Edge light type Replacement - Shape Array Life Time -
Lamp Electrical :	Voltage Supply 9.6V (Typ.) Current Supply 160/200mA (Typ./Max.) Consumption 1.54/1.92W (Typ./Max.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST BHSR-02VS-1 3.5 mm 2 pins 1 pcs BLE-2PINS-AC
Backlight Driver :	No

TIANMA TM062RDS01 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	136 pcs / box	20.22±1.0 Kgs	530×430×274 mm (L×W×H)
