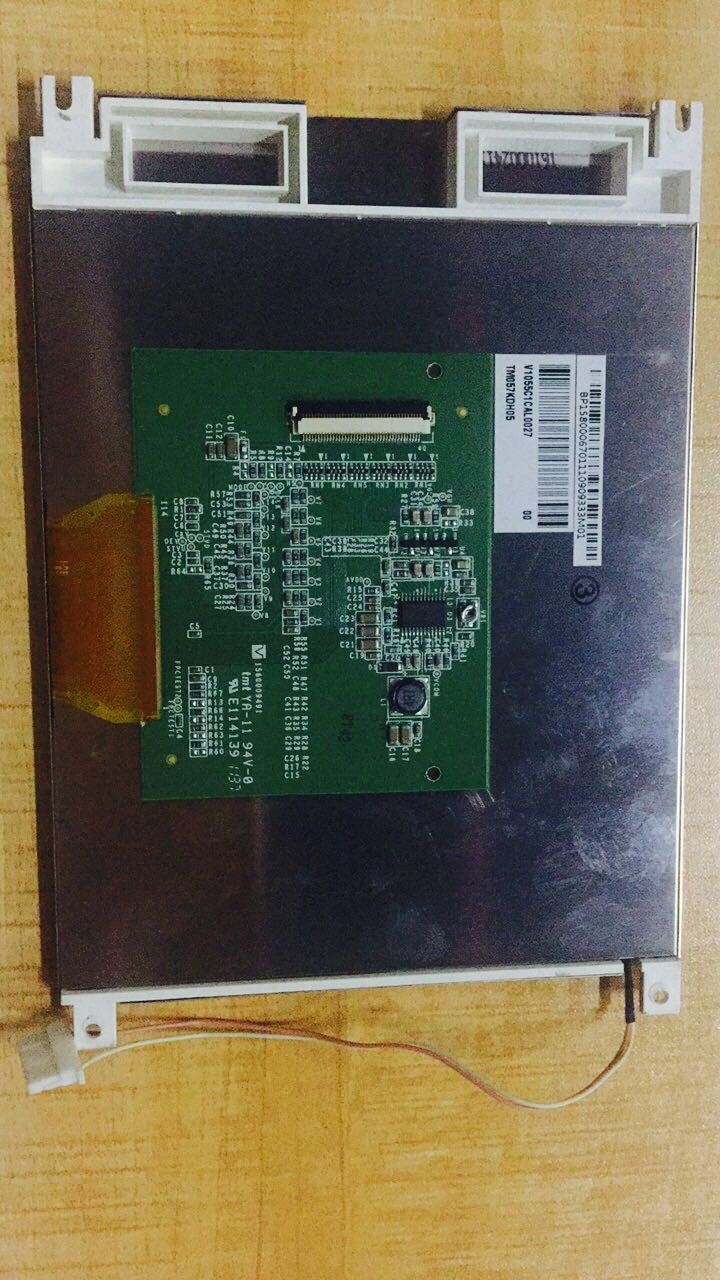

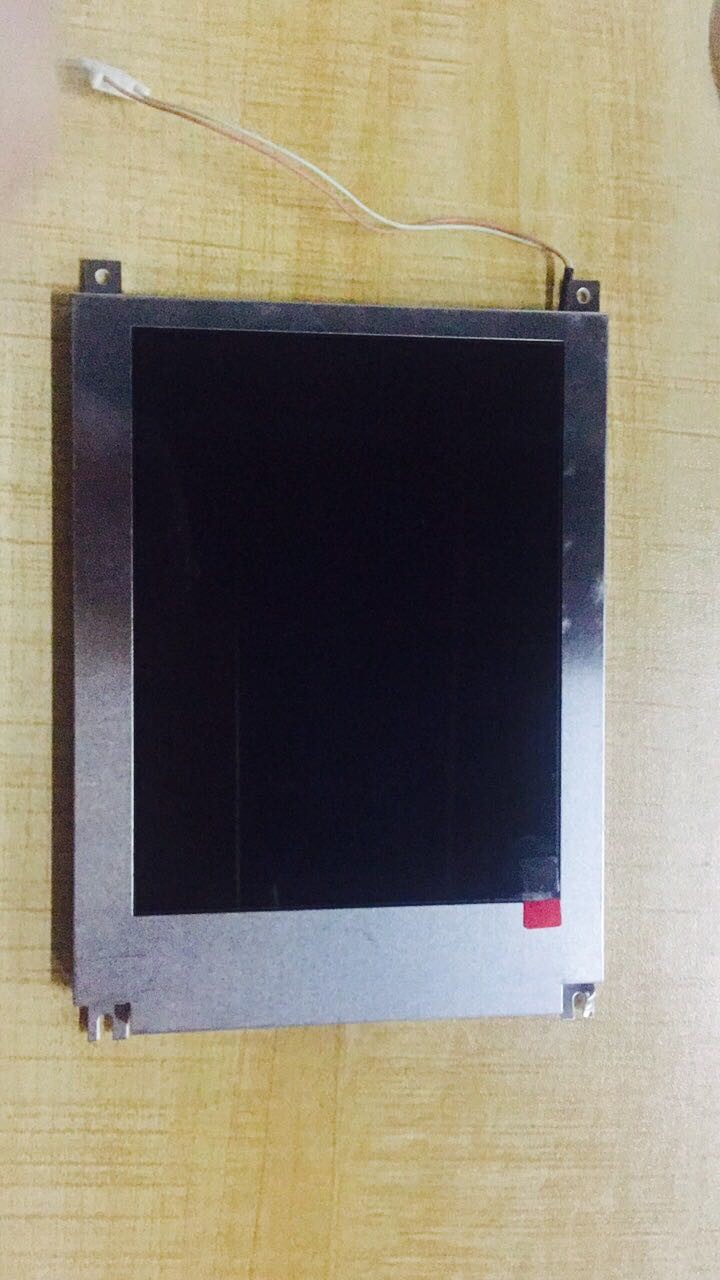

TM057KDH05 TIANMA 5.7" 320(RGB)×240 INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TM057KDH05
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

TM057KDH05 TIANMA 5.7" 320(RGB)×240 INDUSTRIAL LCD DISPLAY

TIANMA TM057KDH05 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		TM057KDH05	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-20 ~ 70 °C	-30 ~ 80 °C	-
Designed For :
Specific Features :

TIANMA TM057KDH05 Mechanical Features

Panel Size :	5.7 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	320(RGB)×240, QVGA	RGB Vertical Stripe	0.120×0.360 mm	0.360×0.360 mm [70PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	115.2×86.4 mm	-	-	-
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	-	Antiglare, Hard coating (3H)

TIANMA TM057KDH05 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	-	TN, Normally White, Transmissive	500:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	70/70/60/70 (Typ.)(CR≥10)	6 o'clock	20 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	5814K	262K (6-bit)	X:0.324; Y:0.362
Luminance Variation :	1.25/1.33 (Typ./Max.)(9 points)

TIANMA TM057KDH05 Electronics Features

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)

TIANMA TM057KDH05 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	145/225mA (Typ./Max.)		3.3V (Typ.)			-
Voltage for Display Signals :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	Parallel RGB (1 ch, 6-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	STARCONN		1 pcs		40 pins

TIANMA TM057KDH05 Lightting Details

Lamp Features :

Lamp Type

WLED

Amount

2S5P

Position

Edge light type

Exchange

Lamp Shape

Array

Lamp Life

Lamp Electrical :

Input Voltage

5.94/7.26V (Min./Max.)

Input Current

200mA (Typ.)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

JST

BHR-03VS-1

4.0 mm

3 pins

1 pcs

BLE-2PINS-AC

Backlight Driver :

Transmissive LCM product, TM057KDH05 can provides 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. TM057KDH05 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of TM057KDH05 We strongly recommend that you should refer to datasheet listed on Panelook.

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
