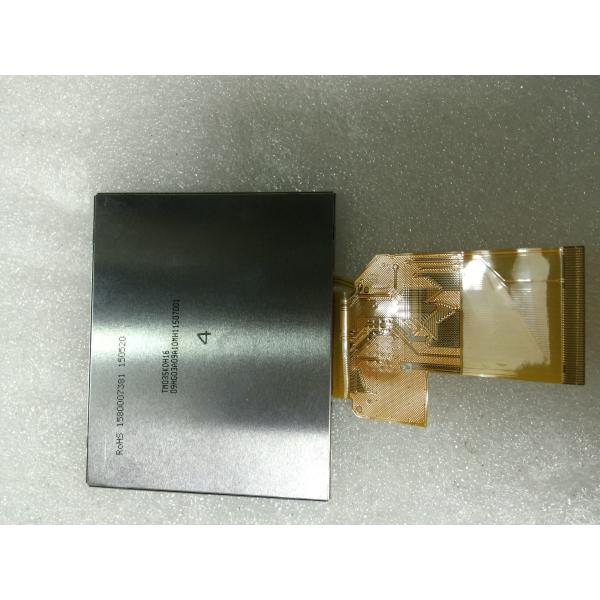

TM035KDH16-06 TIANMA 3.5" 320(RGB)×240 330 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TM035KDH16-06
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

TM035KDH16-06 TIANMA 3.5" 320(RGB)×240 330 cd/m² INDUSTRIAL LCD DISPLAY

TIANMA TM035KDH16-06 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		TM035KDH16-06	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		-20 ~ 70 °C	-30 ~ 80 °C	3.3G (32.3 m/s²)
Used For :
Specific Features :
Remarks :	2 in 1 FPC; Down side FPC (55.62mm length)

TIANMA TM035KDH16-06 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	330 (Typ.)	70/70/60/70 (Typ.)(CR≥10)	20 (Typ.)(Tr+Td)
	Best View on	Display Mode	Contrast Ratio
	12 o'clock	TN, Normally White, Transmissive	500 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	9273K	16.7M (8-bit)	X:0.280; Y:0.305
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	53%	75%	56%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	56%	40%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.25/1.43 (Typ./Max.)(9 points)

TIANMA TM035KDH16-06 Mechanical Features

Panel Size :	3.5"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	320(RGB)×240 [QVGA]	RGB Vertical Stripe	0.219×0.219 [115PPI]	0.073×0.219
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	70.08(H) × 52.56(V)	72.88(H) × 55.36(V)	76.9(H) × 63.9(V)	3.15±0.2 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	29.3g (Typ.)	-	Antiglare

TIANMA TM035KDH16-06 Electronics Features

Vertical Frequency :	60Hz
Driver IC :	COG Built-in NT39016D
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM035KDH16-06 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	6S1P	1 string	20K(Typ.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	19.2/21.6V (Typ./Max.)		20/25mA (Typ./Max.)			384/540mW (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No

TIANMA TM035KDH16-06 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)		-			-
Voltage for Display Signals :	0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Interface Features :	Position	Signal				Type
Interface Features :	-	Digital RGB (8/24-bit) + SPI, CCIR601/656				FPC
FPC Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
FPC Detail :			0.5 mm	54 pins	1 pcs

TIANMA TM035KDH16-06 Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	168 pcs / box	8.94±0.45 Kgs	530×350×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM035KDH16-06 TIANMA 3.5" 320(RGB)×240 330 cd/m² INDUSTRIAL LCD DISPLAY
