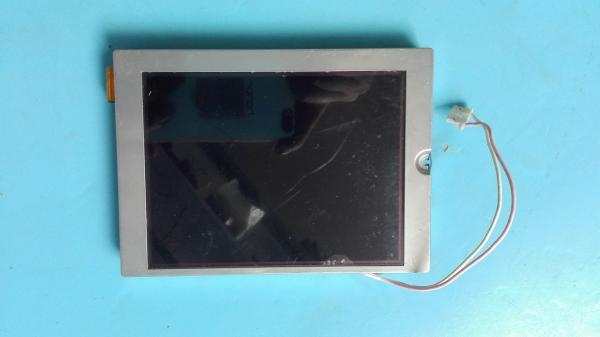

    KCG057QV1DB-G760 Kyocera 5.7INCH LCM 320×240RGB 380NITS CCFL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : KCG057QV1DB-G760
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 800PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    KCG057QV1DB-G760 Kyocera 5.7INCH LCM 320×240RGB 380NITS CCFL INDUSTRIAL LCD DISPLAY


    Kyocera KCG057QV1DB-G760 Application Details

    Basic Detail :
    Manufacturer

    KCG057QV1DB-G760Model Name
    Panel Type
    CSTN-LCD , LCM
    Another Name
    -
    Panel Size
    5.7 inch
    Designed For
    Maximum Ratings :
    OP Temperature
    0 ~ 60 °C
    ST Temperature
    -20 ~ 60 °C
    RoHS

    Vibration Level

    Kyocera KCG057QV1DB-G760 Mechanical Details

    Pixel Features :
    Number of Pixel
    320(RGB)×240, QVGA
    Arrangement
    RGB Vertical Stripe
    Dot Pitch(W×H)
    0.120×0.360 mm
    Pixel Pitch(W×H)
    0.360×0.360 mm [70PPI]
    Physical Size :
    Active Viewing
    115.2(W)×86.4(H) mm
    Overall Dim.
    144(W)×104.8(H) mm
    Bezel Opening
    119.4(W)×90.6(H) mm
    Overall Depth
    9.0/13.2 (Typ./Max.) mm
    Outline Features :
    Form Shape
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio(W:H)
    4:3
    Shape Style
    Fixation :
    Rear mounting poles (4-Φ2.6)
    Other Detail :
    Mass
    175g
    Surface
    Glare (Haze 0%)

    Kyocera KCG057QV1DB-G760 Electronics Details

    Refresh Rate :
    75Hz
    Reverse Scan :
    No
    Driving Method :
    Duty: 1/240

    Kyocera KCG057QV1DB-G760 Interface Detail

    Signal Electrical :
    Input Current
    29.0/19.0mA (Typ.)(3.3V/5.0V)(IDD)
    Input Voltage
    3.3/5.0V (Typ.)(VDD)
    Consumption
    -
    Signal Interface
    Parallel Data (8-bit)
    Interface Features :
    Position
    -
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Amount
    Pin Assignment
    Kyocera Elco
    08-6210-020-340-800+
    0.5 mm
    20 pins
    1 pcs

    Kyocera KCG057QV1DB-G760 Lightting Details

    Lamp Features :
    Lamp Type
    CCFL
    Amount
    1 pcs
    Position
    Edge light type
    Exchange
    -
    Lamp Shape
    U shape
    Lamp Life
    75K(Typ.) (Hours)
    Lamp Electrical :
    Input Voltage
    685V (Typ.)
    Input Current
    3.0/4.0/6.0mA (Min./Typ./Max.)
    Frequency
    30/100KHz (Min./Max.)
    Turn-on Voltage
    1035/1550V (Max.)(Ta=+25/0℃)
    Interface Features :
    Position
    -
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Amount
    Pin Assignment
    JST
    BHR-03VS-1
    4.0 mm
    3 pins
    1 pcs
    BLL-3PINS-HNL

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


    KCG057QV1DB-G760 Kyocera 5.7INCH LCM 320×240RGB 380NITS CCFL INDUSTRIAL LCD DISPLAYKCG057QV1DB-G760 Kyocera 5.7INCH LCM 320×240RGB 380NITS CCFL INDUSTRIAL LCD DISPLAY
