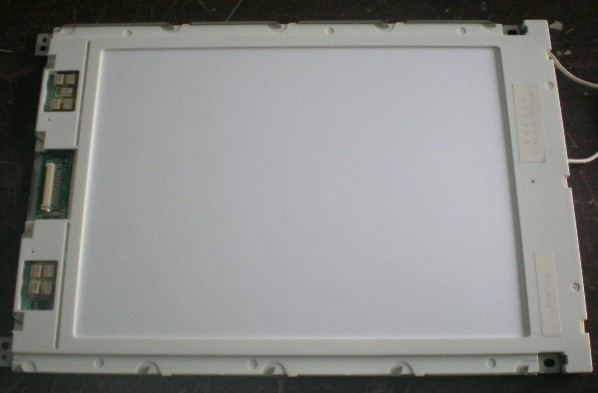

    DMF50260NF-FW Kyocera 9.4INCH LCM 640×480RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : DMF50260NF-FW
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 200PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    DMF50260NF-FW Kyocera 9.4INCH LCM 640×480RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

    OPTREX DMF50260NF-FW Optical Features

    Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
    ---
    Best View onDisplay ModeContrast Ratio
    -STN14 : 1 (Typ.) (Transmissive)
    Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
    -Monochrome

    OPTREX DMF50260NF-FW Mechanical Features

    Panel Size :9.4"
    Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
    640×480 [VGA]Rectangle0.30×0.30 [84PPI]0.30×0.30
    Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
    191.97(H) × 143.97(V)196.0(H) × 148.0(V)260(H) × 174(V)-
    Outline Features :Form FactorOrientationAspect RatioShape Style
    Flat RectangleLandscape type4:3 (H:V)

    OPTREX DMF50260NF-FW Electronics Features

    Vertical Frequency :60Hz

      OPTREX DMF50260NF-FW Backlight Features

      Lamp Features:TypePositionQuantityShapeLife(Hours)Lamp Exchange
      CCFLEdge light type--10K(Typ.)

      OPTREX DMF50260NF-FW Interface Features

      Panel Driving Electrical :Voltage SupplyCurrent SupplyPower
      5.0V (Typ.)14.0/25.0mA (Typ./Max.)-
      Interface Features :PositionSignalType
      -Parallel Data (4-bit)Connector
      Connector Detail :BrandModelPin PitchPin AmountQuantityConfiguration
      molex51021-15001.25 mm15 pins1 pcs

      FAQ:
      Q1: What's the quality of your LCD Panel?
      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

      Q2: What is your return and refund policy?
      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

      Q3: How long is the lead time?
      A: The lead time is about 1-3 working days after receipt of payment.

      Q4: How can I get the quotation?
      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
