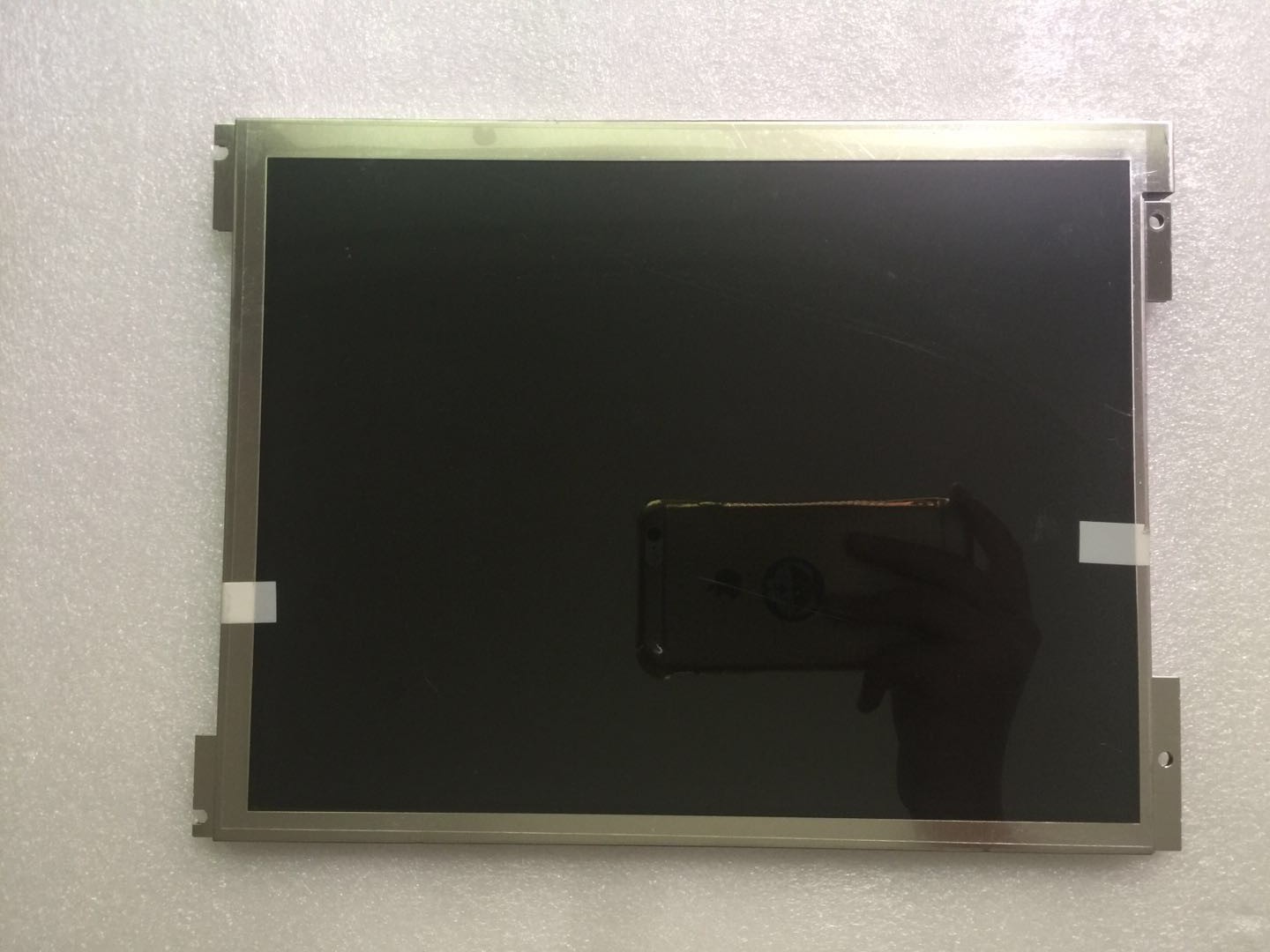

10.4" 640×480RGB WLED TTL Industrial TFT Display TCG104VGLAAANN-AN20

Ask Lasest Price
Brand Name :	Kyocera
Model Number :	TCG104VGLAAANN-AN20
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability :	100PCS
Delivery Time :	1-2day

Add to Cart

Product Details
Company Profile

10.4" 640×480RGB WLED TTL Industrial TFT Display TCG104VGLAAANN-AN20

Kyocera TCG104VGLAAANN-AN20 Application Details

Basic Detail :	Manufacturer TCG104VGLAAANN-AN20Model Name Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 10.4 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C RoHS -Vibration Level

Kyocera TCG104VGLAAANN-AN20 Optical Details

Basic Detail :	Luminance 400 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 10/20 (Typ.)(Tr/Td) ms Viewing Angle 70/70/60/70 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.305; Wy:0.315 Support Color 262K (6-bit) Color Temperature 7106K White Variation -
1931 Color Gamlt :	NTSC Ratio 48% sRGB 68% coverage Adobe RGB 51% coverage DCI-P3 50% coverage Rec.2020 36% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera TCG104VGLAAANN-AN20 Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×480, VGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size :	Active Viewing 211.2(W)×158.4(H) mm Overall Dim. 240.7(W)×180.2(H) mm Bezel Opening 215.4(W)×162.2(H) mm Overall Depth 9.0±0.5 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail :	Mass 455g Surface Antiglare

Kyocera TCG104VGLAAANN-AN20 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)

Kyocera TCG104VGLAAANN-AN20 Interface Detail

Signal Electrical :	Input Current 150/185mA (Typ./Max.) Input Voltage 3.3V (Typ.) Consumption - Signal Interface Parallel RGB (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.8V; 2.0V≤VIH≤VDD
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment Kyocera Elco 04-6240-040-023-846+ 0.5 mm 40 pins 1 pcs

Kyocera TCG104VGLAAANN-AN20 Lightting Details

Lamp Features :	Lamp Type WLED Amount - Position Edge light type Exchange - Lamp Shape - Lamp Life 70K(Typ.) (Hours)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Voltage 12.0±1.2V Input Current 290/450mA (Typ./Max.)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
