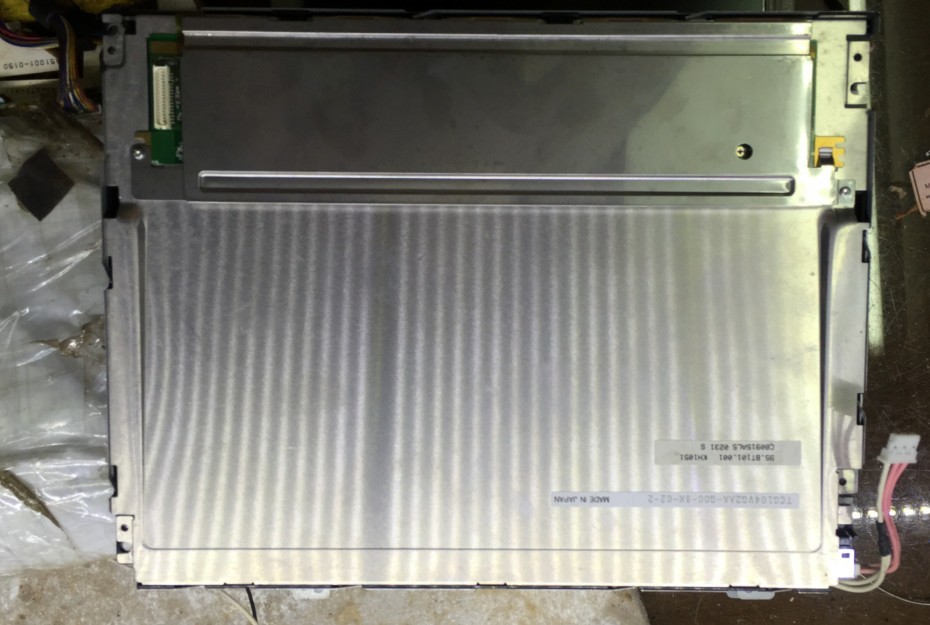

    LCM 1024×768RGB 10.40nits WLED LVDS Lcd Video Panel Kyocera 10.4INCH

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG104XGLPAPFA-AA40
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 50PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    LCM 1024×768RGB 10.40nits WLED LVDS Lcd Video Panel Kyocera 10.4INCH

    Kyocera TCG104XGLPAPFA-AA40 Application Details

    Basic Detail :ManufacturerModel NameTCG104XGLPAPFA-AA40
    Panel Typea-Si TFT-LCD , LCMAnother Name-
    Panel Size10.4 inchDesigned For




    Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
    Vibration Level-RoHS

    Kyocera TCG104XGLPAPFA-AA40 Optical Details

    Basic Information :Luminance1040 cd/m² (Typ.)Contrast Ratio700 : 1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed18/12 (Typ.)(Tr/Td) (ms)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeAWV, Normally Black, Transmissive
    Color Performance :ChromaticityWx:0.315; Wy:0.340Support Color262K/16.7M (6-bit / 6-bit + Dithering)
    Color Temperature6304KWhite Uniformity-
    1931 Color Gamlt :NTSC Ratio51%sRGB71% coverage
    Adobe RGB53% coverageDCI-P353% coverage
    Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera TCG104XGLPAPFA-AA40 Mechanical Details

    Pixel Features :Number of Pixel1024(RGB)×768 [XGA]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.0685×0.2055 mmPixel Pitch(W×H)0.2055×0.2055 mm [123PPI]
    Physical Size :Active Viewing210.4(W)×157.8(H) mmOverall Dim.230(W)×180.2(H) mm
    Bezel Opening-Overall Depth12.3±0.75 mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)4:3Shape Style
    Touchscreen :TP ControllerWithout touch controllerTP Interface-
    Touch Points-TP Technology4-wire Resistive Touch
    Fixation :Side mounting holes (4-M3) on left, right bezel
    Other Detail :Mass605g (Typ.)SurfaceAntiglare, Hard coating (2H)

    Kyocera TCG104XGLPAPFA-AA40 Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (180°)

    Kyocera TCG104XGLPAPFA-AA40 Interface Details

    Signal Electrical :Input Current270/350mA (Typ./Max.)Input Voltage3.3V (Typ.)
    Consumption-Signal InterfaceLVDS (1 ch, 6/8-bit)
    Interface Features :Position-Physical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    I-PEX20186-020E-11F1 pcs1.25 mm20 pinsLVDS-20P1C8B-010H

    Kyocera TCG104XGLPAPFA-AA40 Lightting Details

    Lamp Features:Lamp Shape-Lamp TypeWLEDPositionEdge light type
    Exchange-Amount-Life70K(Typ.) (Hours)
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
    JSTSM06B-SHLS-G-TF(LF)(SN)1 pcs1.0 mm6 pins
    Backlight Driver :With LED Driver
    Driver Electrical :Input Current0.87/1.12mA (Typ./Max.)Input Voltage12.0±1.2V
