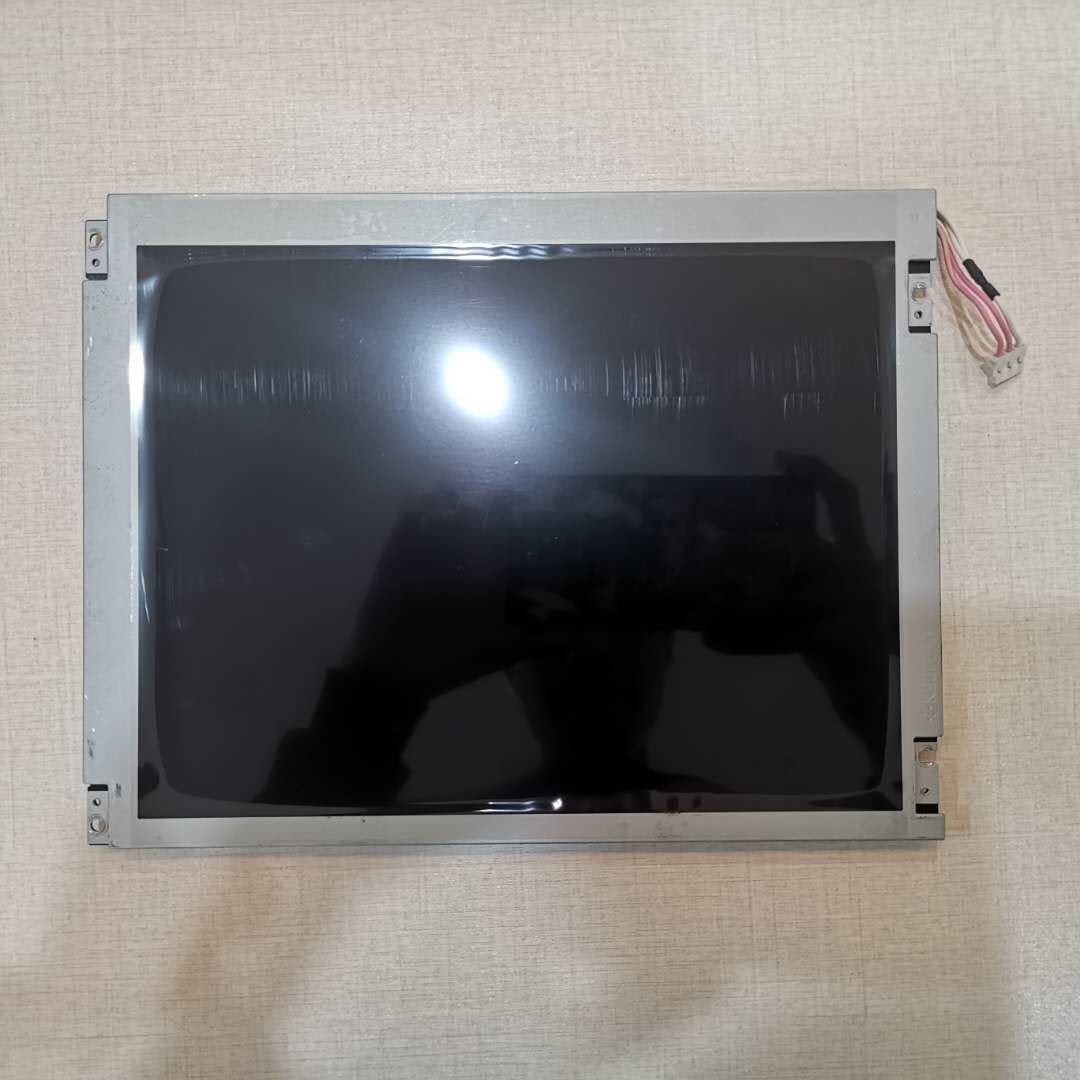

1024×768RGB 600nits Industrial TFT Display WLED LVDS TCG104XGLPAPNN-AN31-S

Ask Lasest Price
Brand Name :	Kyocera
Model Number :	TCG104XGLPAPNN-AN31-S
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability :	200PCS
Delivery Time :	1-2day

Add to Cart

Product Details
Company Profile

1024×768RGB 600nits Industrial TFT Display WLED LVDS TCG104XGLPAPNN-AN31-S

Kyocera TCG104XGLPAPNN-AN31-S Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		TCG104XGLPAPNN-AN31-S	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		-30 ~ 80 °C	-30 ~ 80 °C	-

Kyocera TCG104XGLPAPNN-AN31-S Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	600 (Typ.)	85/85/85/85 (Typ.)(CR≥10)	18/12 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	AWV, Normally Black, Transmissive	700 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6304K	262K/16.7M (6-bit / 6-bit + Dithering)	X:0.315; Y:0.340
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	51%	71%	53%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	52%	38%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera TCG104XGLPAPNN-AN31-S Mechanical Features

Panel Size :	10.4"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1024(RGB)×768 [XGA]	RGB Vertical Stripe	0.2055×0.2055 [123PPI]	0.0685×0.2055
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	210.4(H) × 157.8(V)	215.4(H) × 161.8(V)	230(H) × 180.2(V)	10.5±0.5 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	480g (Typ.)	-	Antiglare

Kyocera TCG104XGLPAPNN-AN31-S Electronics Features

Reverse Scan :	No
Vertical Frequency :	60Hz

Kyocera TCG104XGLPAPNN-AN31-S Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	-	-	50K(Typ.)	-
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	With LED Driver				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	SM06B-SHLS-G-TF(LF)(SN)	1.0 mm	6 pins	1 pcs
Driver Electrical :	Voltage Supply		Current Supply			Power Consumption
Driver Electrical :	12.0±1.2V		440/560mA (Typ./Max.)			-

Kyocera TCG104XGLPAPNN-AN31-S Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)		270/350mA (Typ./Max.)			-
Interface Features :	Position	Signal				Type
Interface Features :	-	LVDS (1 ch, 6/8-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	I-PEX	20186-020E-11F	1.25 mm	20 pins	1 pcs	LVDS-20P1C8B-010H

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
