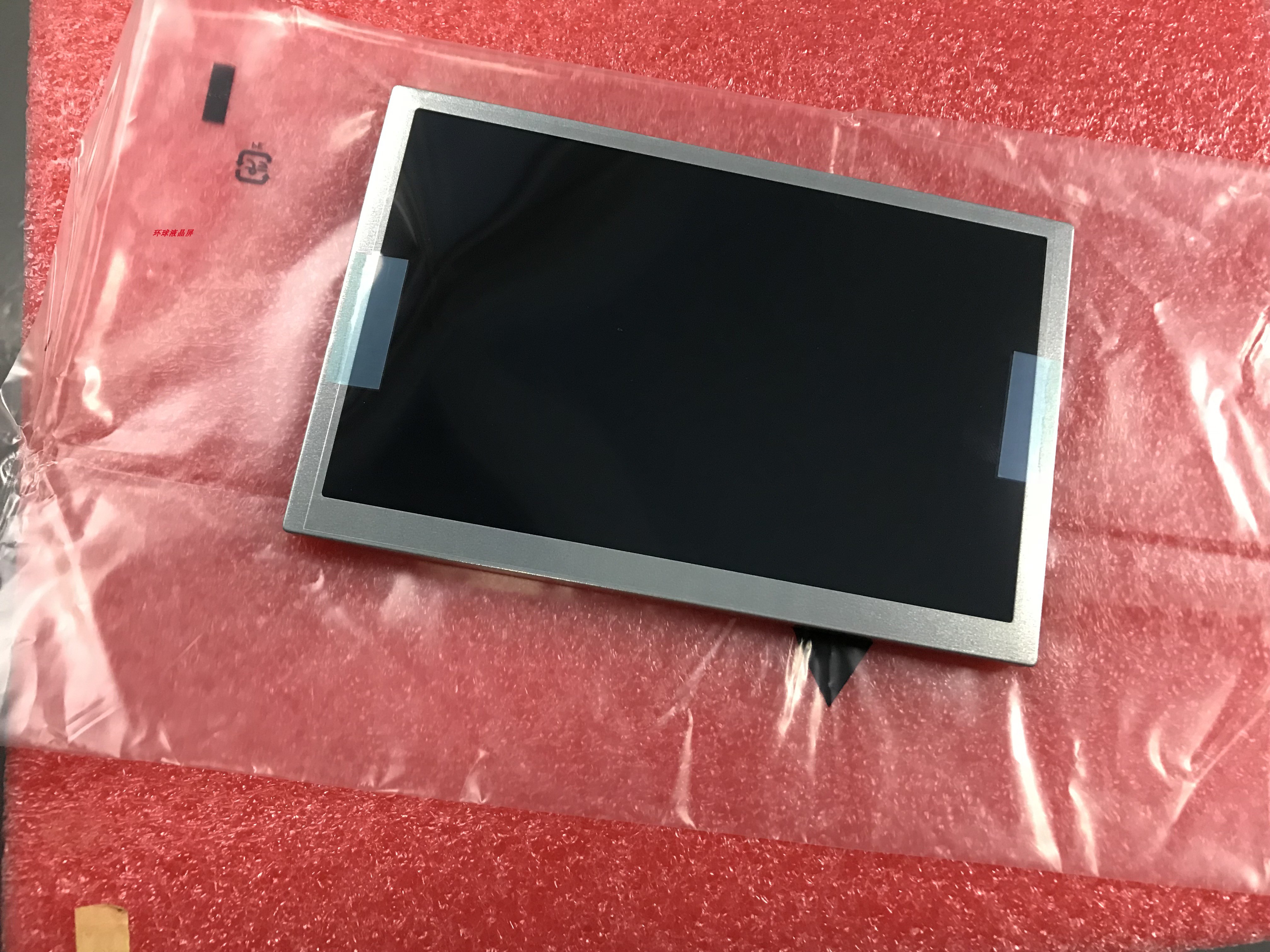

    TCG070WVLQCPNN-AN01 Kyocera 7INCH LCM 800×480RGB 350NITS WLED TTL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG070WVLQCPNN-AN01
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 30PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    TCG070WVLQCPNN-AN01 Kyocera 7INCH LCM 800×480RGB 350NITS WLED TTL INDUSTRIAL LCD DISPLAY

    Kyocera TCG070WVLQCPNN-AN01 Application Details

    Basic Information :BrandModelTCG070WVLQCPNN-AN01
    TypeLCM a-Si TFT-LCDUsed For
    Screen Size7.0"Alias-
    Environment :Storage Temp.-30 ~~ 80 °COperating Temp.-20 ~~ 70 °C
    RoHSVibration-

    Kyocera TCG070WVLQCPNN-AN01 Mechanical Details

    Pixel Features :Resolution800(RGB)×480, WVGADot Pitch(mm)0.0635×0.1905 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.1905×0.1905 (H×V) [133PPI]
    Mechanical Size :Active Area(mm)152.4(H) × 91.44(V)Bezel Area(mm)154.4(H) × 93.4(V)
    Outline Dim.(mm)165(H) × 104.4(V)Depth(mm)8.2/8.5 (Typ./Max.)
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio15:9 (H:V)OrientationLandscape type
    Mounting :Without
    Other Spec :Weight205gTreatmentAntiglare

    Kyocera TCG070WVLQCPNN-AN01 Optical Details

    Basic Information :Luminance(cd/m²)350 (Typ.)Contrast Ratio650:1 (Typ.) (Transmissive)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)Display ModeAWV, Normally Black, Transmissive
    Best View onSymmetryResponse(ms)18/12 (Typ.)(Tr/Td)
    Color Performance :White CoordinateX:0.310; Y:0.325Display Colors262K (6-bit)
    Color Temperature6685KWhite Uniformity-
    1931 Color Gamlt :NTSC Ratio50%sRGB70% coverage
    Adobe RGB53% coverageDCI-P352% coverage
    Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera TCG070WVLQCPNN-AN01 Electronics Details

    Frame Rate :60Hz
    Reverse Scan :Yes (180°)
    Time Controller (T-CON) :Embedded T-CON

    Kyocera TCG070WVLQCPNN-AN01 Interface Details

    Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply160/210mA (Typ./Max.)
    Consumption0.53W (Typ.)
    Signal Type :Parallel RGB (1 ch, 6-bit)Signal Voltage0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
    Interface Features :Position-TypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    IRISOIMSA-9637S-40C-GF1 pcs40 pins0.5 mm

      Kyocera TCG070WVLQCPNN-AN01 Backlight Details

      Backlight Features:Shape-TypeWLEDPositionEdge light type
      Replacement-Quantity-Life Time70K(Typ.) (Hours)
      Lamp Electrical :Voltage Supply18.0/21.2V (Typ./Max.)Current Supply60mA (Typ./Max.)
      Interface Features :Position-TypeIncluded in panel signal interface
      Backlight Driver :No

      FAQ:
      Q1: What's the quality of your LCD Panel?
      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
      Q2: What is your return and refund policy?
      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
      Q3: How long is the lead time?
      A: The lead time is about 1-3 working days after receipt of payment.
      Q4: How can I get the quotation?
      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


      TCG070WVLQCPNN-AN01 Kyocera 7INCH LCM 800×480RGB 350NITS WLED TTL INDUSTRIAL LCD DISPLAYTCG070WVLQCPNN-AN01 Kyocera 7INCH LCM 800×480RGB 350NITS WLED TTL INDUSTRIAL LCD DISPLAY
