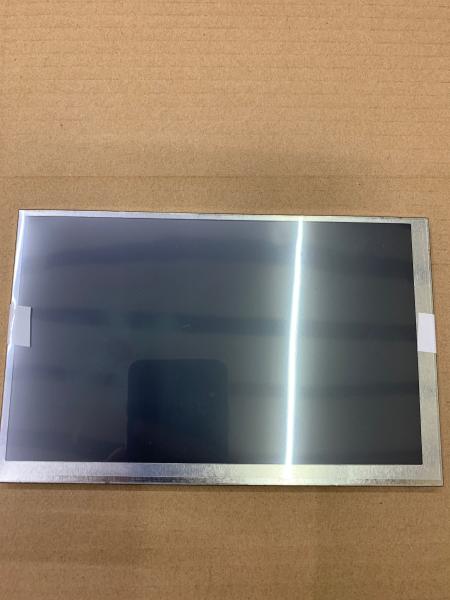

TCG070WVLPAANN-AN50 Kyocera 7INCH LCM 800×480RGB 700NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap TCG070WVLPAANN-AN50 Kyocera 7INCH LCM 800×480RGB 700NITS WLED TTL INDUSTRIAL LCD DISPLAY from wholesalers

    Buy cheap TCG070WVLPAANN-AN50 Kyocera 7INCH LCM 800×480RGB 700NITS WLED TTL INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap TCG070WVLPAANN-AN50 Kyocera 7INCH LCM 800×480RGB 700NITS WLED TTL INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap TCG070WVLPAANN-AN50 Kyocera 7INCH LCM 800×480RGB 700NITS WLED TTL INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap TCG070WVLPAANN-AN50 Kyocera 7INCH LCM 800×480RGB 700NITS WLED TTL INDUSTRIAL LCD DISPLAY from wholesalers

    TCG070WVLPAANN-AN50 Kyocera 7INCH LCM 800×480RGB 700NITS WLED TTL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG070WVLPAANN-AN50
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 50PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    TCG070WVLPAANN-AN50 Kyocera 7INCH LCM 800×480RGB 700NITS WLED TTL INDUSTRIAL LCD DISPLAY

    Kyocera TCG070WVLPAANN-AN50 Application Details

    Basic Detail :
    Manufacturer

    TCG070WVLPAANN-AN50Model Name
    Panel Type
    a-Si TFT-LCD , LCM
    Another Name
    -
    Panel Size
    7.0 inch
    Designed For
    Maximum Ratings :
    OP Temperature
    -20 ~ 70 °C
    ST Temperature
    -30 ~ 80 °C
    RoHS

    -Vibration Level

    Kyocera TCG070WVLPAANN-AN50 Optical Details

    Basic Detail :
    Luminance
    700 cd/m² (Typ.)
    Contrast Ratio
    1000:1 (Typ.) (Transmissive)
    Good View at
    12 o'clock
    Response Speed
    5/25 (Typ.)(Tr/Td) ms
    Viewing Angle
    80/80/60/80 (Typ.)(CR≥10)
    Operating Mode
    TN, Normally White, Transmissive
    Color Performance :
    Chromaticity
    Wx:0.290; Wy:0.305
    Support Color
    262K (6-bit)
    Color Temperature
    8405K
    White Variation
    1.43 (Max.)(5 points)
    1931 Color Gamlt :
    NTSC Ratio
    49%
    sRGB
    68% coverage
    Adobe RGB
    51% coverage
    DCI-P3
    51% coverage
    Rec.2020
    36% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Dispaly Performance :
    Outdoor Visibility
    Sunlight Readable
    Transmissivity
    -

    Kyocera TCG070WVLPAANN-AN50 Mechanical Details

    Pixel Features :
    Number of Pixel
    800(RGB)×480, WVGA
    Arrangement
    RGB Vertical Stripe
    Dot Pitch(W×H)
    0.0635×0.1905 mm
    Pixel Pitch(W×H)
    0.1905×0.1905 mm [133PPI]
    Physical Size :
    Active Viewing
    152.4(W)×91.44(H) mm
    Overall Dim.
    165(W)×104.4(H) mm
    Bezel Opening
    154.4(W)×93.4(H) mm
    Overall Depth
    8.2/8.5 (Typ./Max.) mm
    Outline Features :
    Form Shape
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio(W:H)
    15:9
    Shape Style
    Fixation :
    Without
    Other Detail :
    Mass
    195g (Typ.)
    Surface
    Antiglare

    Kyocera TCG070WVLPAANN-AN50 Electronics Details

    Reverse Scan :
    Yes (180°)
    Time Controller (T-CON) :
    Embedded T-CON

    Kyocera TCG070WVLPAANN-AN50 Interface Detail

    Signal Electrical :
    Input Current
    180/235mA (Typ./Max.)
    Input Voltage
    3.3V (Typ.)
    Consumption
    0.594W (Typ.)
    Signal Interface
    Parallel RGB (1 ch, 6-bit)
    Interface Features :
    Position
    -
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Amount
    Pin Assignment
    IRISO
    IMSA-9681S-40A-GF
    0.5 mm
    40 pins
    1 pcs

    Kyocera TCG070WVLPAANN-AN50 Lightting Details

    Lamp Features :
    Lamp Type
    WLED
    Amount
    2 strings
    Position
    Edge light type
    Exchange
    -
    Lamp Shape
    2 strings
    Lamp Life
    70K(Typ.) (Hours)
    Lamp Electrical :
    Input Voltage
    18.0/21.2V (Typ./Max.)
    Input Current
    60mA (Typ.)
    Interface Features :
    Position
    -
    Type
    Included in panel signal interface
    Backlight Driver :
    No

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
