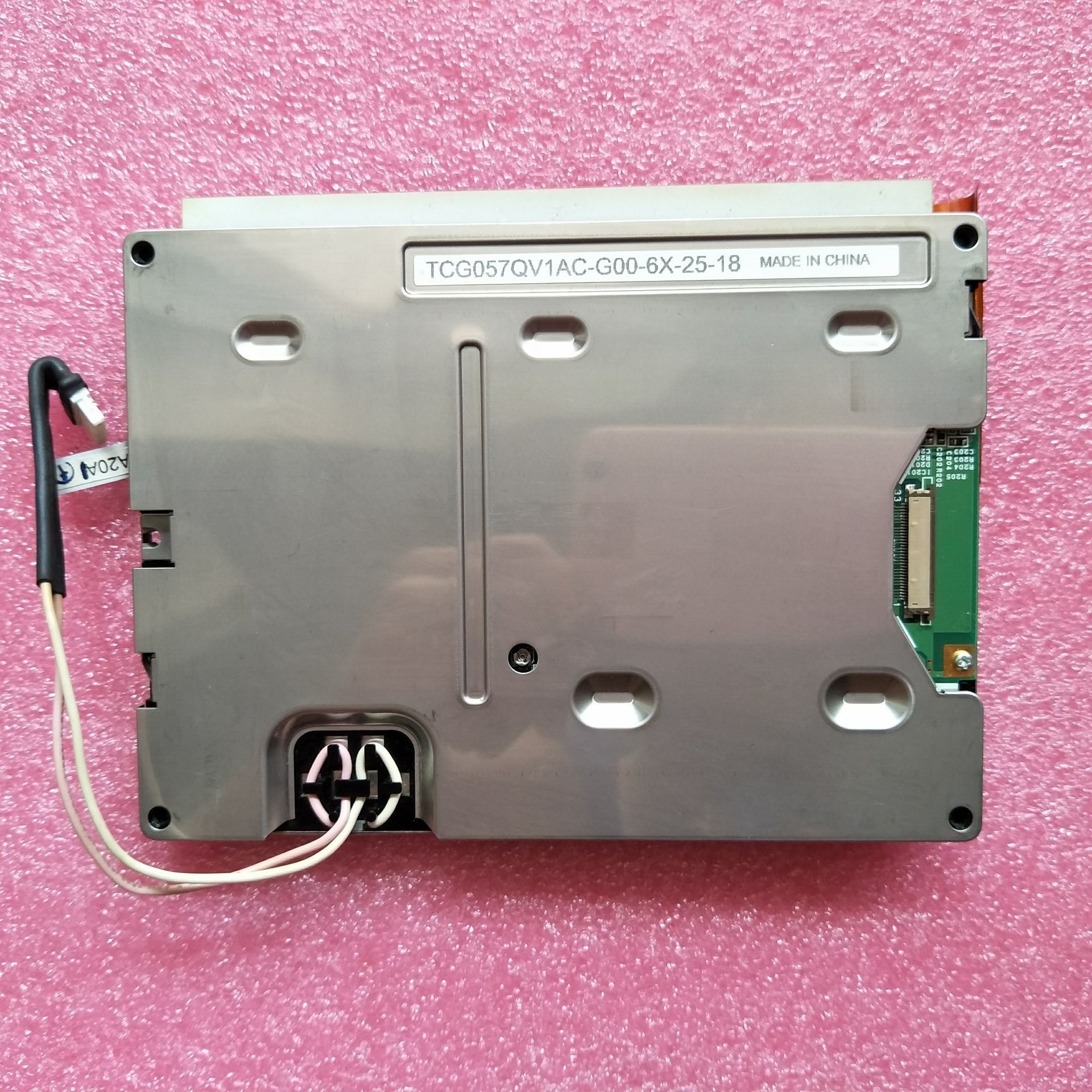

    TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG057QV1AC-G00
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 800PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    TCG057QV1AC-G00 Kyocera 5.7INCH LCM 320×240RGB 470NITS CCFL TTL INDUSTRIAL LCD DISPLAY

    Kyocera TCG057QV1AC-G00 Application Details

    Basic Info :
    Panel Brand

    TCG057QV1AC-G00Panel Model
    Diagonal Size
    Application

    a-Si TFT-LCD , LCMPanel Type
    Model Alias
    -
    Reliability :
    Operating Temp.
    -10 ~ 70 °C
    Storage Temp.
    -30 ~ 80 °C
    RoHS State

    -Vibration Rating

    Kyocera TCG057QV1AC-G00 Mechanical Details

    Pixel Features :
    Pixel Format
    320(RGB)×240, QVGA
    Dot Pitch
    0.120×0.360 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.360×0.360 mm (H×V) [70PPI]
    Mechanical Size :
    Display Area
    115.2×86.4 mm (H×V)
    Bezel Area
    117.2×88.4 mm (H×V)
    Outline Dim.
    144×104.8 mm (H×V)
    Outline Depth
    13.0±0.5 mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    4:3 (H:V)
    Shape Style
    Holes & Brackets :
    Rear mounting holes (4-Φ2.6)
    Other Features :
    Weight
    220g (Typ.)
    Surface
    Glare (Haze 0%)

    Kyocera TCG057QV1AC-G00 Optical Details

    Basic Information :
    Brightness
    470 cd/m² (Typ.)
    Contrast Ratio
    450:1 (Typ.) (Transmissive)
    Viewing Angle
    70/70/70/50 (Typ.)(CR≥5)
    Optical Mode
    TN, Normally White, Transmissive
    Viewing Direction
    -
    Response Time
    10/25 (Typ.)(Tr/Td) ms
    Color Performance :
    Chromaticity
    Wx:0.311; Wy:0.318
    Color Numbers
    262K (6-bit)
    Color Temperature
    6699K
    Uniformity
    -
    1931 Color Gamlt :
    NTSC Ratio
    51%
    sRGB
    70% coverage
    Adobe RGB
    53% coverage
    DCI-P3
    53% coverage
    Rec.2020
    38% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera TCG057QV1AC-G00 Electronics Details

    Frame Frequency :
    60Hz
    Reverse Scan :
    Yes (U/D, L/R)
    Time Controller (T-CON) :
    Embedded T-CON

    Kyocera TCG057QV1AC-G00 Backlight Details

    Back-light Features :
    Lamp Type
    CCFL
    Amount
    1 pcs
    Life Time
    -
    Replacement
    -
    Lamp Shape
    U shape
    Position
    Edge light type
    Lamp Electrical :
    Voltage Input
    685V (Typ.)
    Current Input
    4.0±1mA
    Frequency
    30/100KHz (Min./Max.)
    Kick-off Voltage
    1035/1550V (Max.)(Ta=+25/0°)
    Interface Features :
    Type
    Connector
    Position
    -
    Lamp Driver
    Optional
    Interface Detail :
    Brand
    Model
    Pin Pitch
    Pins
    Amount
    Configuration
    JST
    4.0 mm
    3 pins
    1 pcs
    BLL-3PINS-HNL

      Kyocera TCG057QV1AC-G00 Interface Detail

      Signal Systerm :
      CMOS (1 ch, 6-bit)
      Logic Voltage
      0≤VIL≤0.3VDD; 0.7VDD≤VIH≤5.5V
      Signal Electrical :
      Voltage Input
      3.3V (Typ.)
      Current Input
      130/160mA (Typ./Max.)
      Interface Features :
      Type
      Connector
      Position
      -
      Connector Detail :
      Brand
      Model
      Pin Pitch
      Pins
      Amount
      Configuration
      Kyocera Elco
      0.5 mm
      33 pins
      1 pcs
      DRGB-33P1C6B-020C
