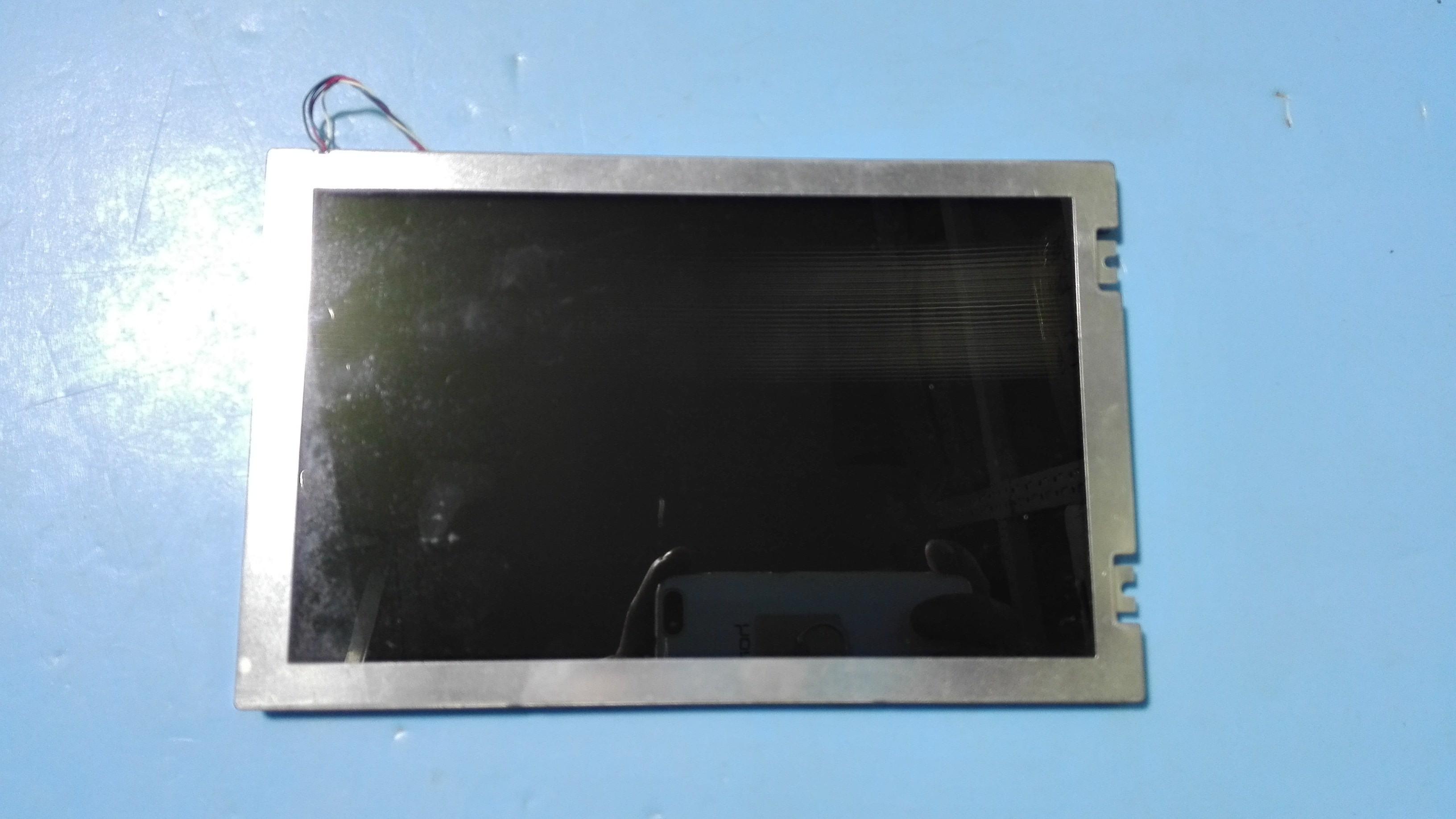

    TCG085WVLQDPGJ-GC00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG085WVLQDPGJ-GC00
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 50PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    TCG085WVLQDPGJ-GC00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY

    Kyocera TCG085WVLQDPGJ-GC00 Application Details

    Basic Information :BrandModelTCG085WVLQDPGJ-GC00
    TypeLCM a-Si TFT-LCDUsed For



    Screen Size8.5"Alias-
    Environment :Storage Temp.-30 ~~ 80 °COperating Temp.-20 ~~ 70 °C
    RoHSVibration-

    Kyocera TCG085WVLQDPGJ-GC00 Mechanical Details

    Pixel Features :Resolution800(RGB)×480, WVGADot Pitch(mm)0.077×0.231 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.231×0.231 (H×V) [109PPI]
    Mechanical Size :Active Area(mm)184.8(H) × 110.88(V)Bezel Area(mm)-
    Outline Dim.(mm)210(H) × 134(V)Depth(mm)10.54±0.8
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio15:9 (H:V)OrientationLandscape type
    Touch Panel :Touch Points-Touch Panel4-wire Resistive Touch
    TP ControllerWithout touch controllerTouch Signal-
    Mounting :Face mounting holes (2 pcs)
    Other Spec :Weight375gTreatmentAnti Fingerprint + Clear, Hard coating (3H)

    Kyocera TCG085WVLQDPGJ-GC00 Optical Details

    Basic Information :Luminance(cd/m²)320 (Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)Display ModeAWV, Normally Black, Transmissive
    Best View onSymmetryResponse(ms)12/18 (Typ.)(Tr/Td)
    Color Performance :White CoordinateX:0.310; Y:0.325Display Colors262K (6-bit)
    Color Temperature6685KWhite Uniformity-
    1931 Color Gamlt :NTSC Ratio50%sRGB70% coverage
    Adobe RGB53% coverageDCI-P352% coverage
    Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera TCG085WVLQDPGJ-GC00 Electronics Details

    Frame Rate :60Hz
    Reverse Scan :Yes (U/D, L/R)

    Kyocera TCG085WVLQDPGJ-GC00 Interface Details

    Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply200/260mA (Typ./Max.)
    Signal Type :CMOS (1 ch, 6-bit)Signal Voltage-
    Interface Features :Position-TypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    HRSFH33-40S-0.5SH(10)1 pcs40 pins0.5 mm

    Kyocera TCG085WVLQDPGJ-GC00 Backlight Details

    Backlight Features:Shape-TypeWLEDPositionEdge light type
    Replacement-Quantity-Life Time100K(Typ.) (Hours)
    Lamp Electrical :Voltage Supply29.2/32.0V (Typ./Max.)Current Supply60mA (Typ.)
    Interface Features :Position-TypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    JSTPHR-41 pcs4 pins2.0 mmBLE-4PINS-AACC
    Backlight Driver :No

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


    TCG085WVLQDPGJ-GC00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAYTCG085WVLQDPGJ-GC00 Kyocera 8.5INCH LCM 800×480RGB 320NITS WLED TTL INDUSTRIAL LCD DISPLAY
