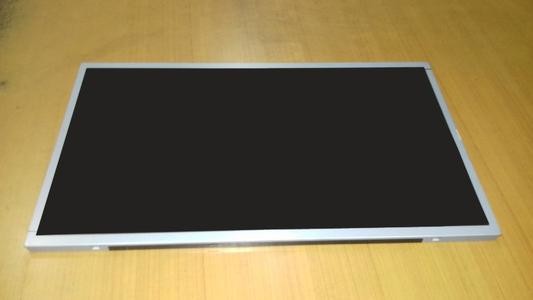

    TCG101WXLPAANN-AN20-S Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG101WXLPAANN-AN20-S
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 100PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    TCG101WXLPAANN-AN20-S Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

    Kyocera TCG101WXLPAANN-AN20-S Application Features

    Basic Information :Brand NameModel NameTypeModel Alias
    TCG101WXLPAANN-AN20-Sa-Si TFT-LCD , LCM-
    Maximum Ratings :RoHSOperating TemperatureStorage TemperatureVibration Level
    -20 ~ 70 °C-30 ~ 80 °C-

    Kyocera TCG101WXLPAANN-AN20-S Mechanical Features

    Screen Size :10.1"
    Pixel Features :Pixel NumberPixel FormatDot Pitch (H×V)Pixel Pitch (H×V)
    1280(RGB)×800, WXGARGB Vertical Stripe0.0565×0.1695 mm0.1695×0.1695 mm [149PPI]
    Mechanical Size :Display Area (H×V)Bezel Opening (H×V)Overall Dimension (H×V)Overall Depth
    216.96×135.6 mm219.96×138.6 mm236×156.8 mm6.7/9.9 (Typ./Max.) mm
    Outline Features :Form ShapeAspect Ratio (H:V)OrientationShape Style
    Flat Rectangle16:10Landscape type
    Other Spec :MassPanel CoverSurface Treatment
    500g (Typ.)-Antiglare
    Holes & Brackets :Side mounting holes (4-M2) on left, right bezel

    Kyocera TCG101WXLPAANN-AN20-S Optical Features

    Basic Information :LuminanceWork ModeContrast Ratio
    500 cd/m² (Typ.)TN, Normally White, Transmissive800:1 (Typ.) (Transmissive)
    Good View atViewing AngleResponse Time
    -80/80/80/80 (Typ.)(CR≥10)8/22 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color Temperature:Support ColorColor Coordinate
    8665K16.2M (6-bit + FRC)X:0.285; Y:0.310
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    50%70%52%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    52%37%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera TCG101WXLPAANN-AN20-S Electronics Features

    Refresh Rate :60Hz
    Reverse Scan :Yes (180°)

    Kyocera TCG101WXLPAANN-AN20-S Backlight Features

    Back-light Features:TypePositionLife(Hours)AmountShapeReplacement
    WLEDEdge light type50K(Typ.)---
    Interface Features :WLED Driver StatePhysical TypeInterface Position
    With LED DriverConnector-
    Interface DetailBrand NameModel NameAmountPinsPin PitchPin Configuration
    JSTSM08B-SHLS-TF(LF)(SN)1 pcs8 pins1.0 mm
    WLED Driver Electrical :Input VoltageInput CurrentPower Consumption
    12.0V (Typ.)275/360mA (Typ./Max.)-

      Kyocera TCG101WXLPAANN-AN20-S Interface Features

      Signal Electrical :Input VoltageInput CurrentPower Consumption
      3.3V (Typ.)350/460mA (Typ.)-
      Interface Features :Signal TypePhysical TypeInterface Position
      LVDS (1 ch, 8-bit)Connector-
      Interface Detail :Brand NameModel NameAmountPinsPin PitchPin Configuration
      HRSDF19L-20P-1H(54)1 pcs20 pins1.0 mm

      FAQ:
      Q1: What's the quality of your LCD Panel?
      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
      Q2: What is your return and refund policy?
      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
      Q3: How long is the lead time?
      A: The lead time is about 1-3 working days after receipt of payment.
      Q4: How can I get the quotation?
      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


      TCG101WXLPAANN-AN20-S Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAYTCG101WXLPAANN-AN20-S Kyocera 10.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY
