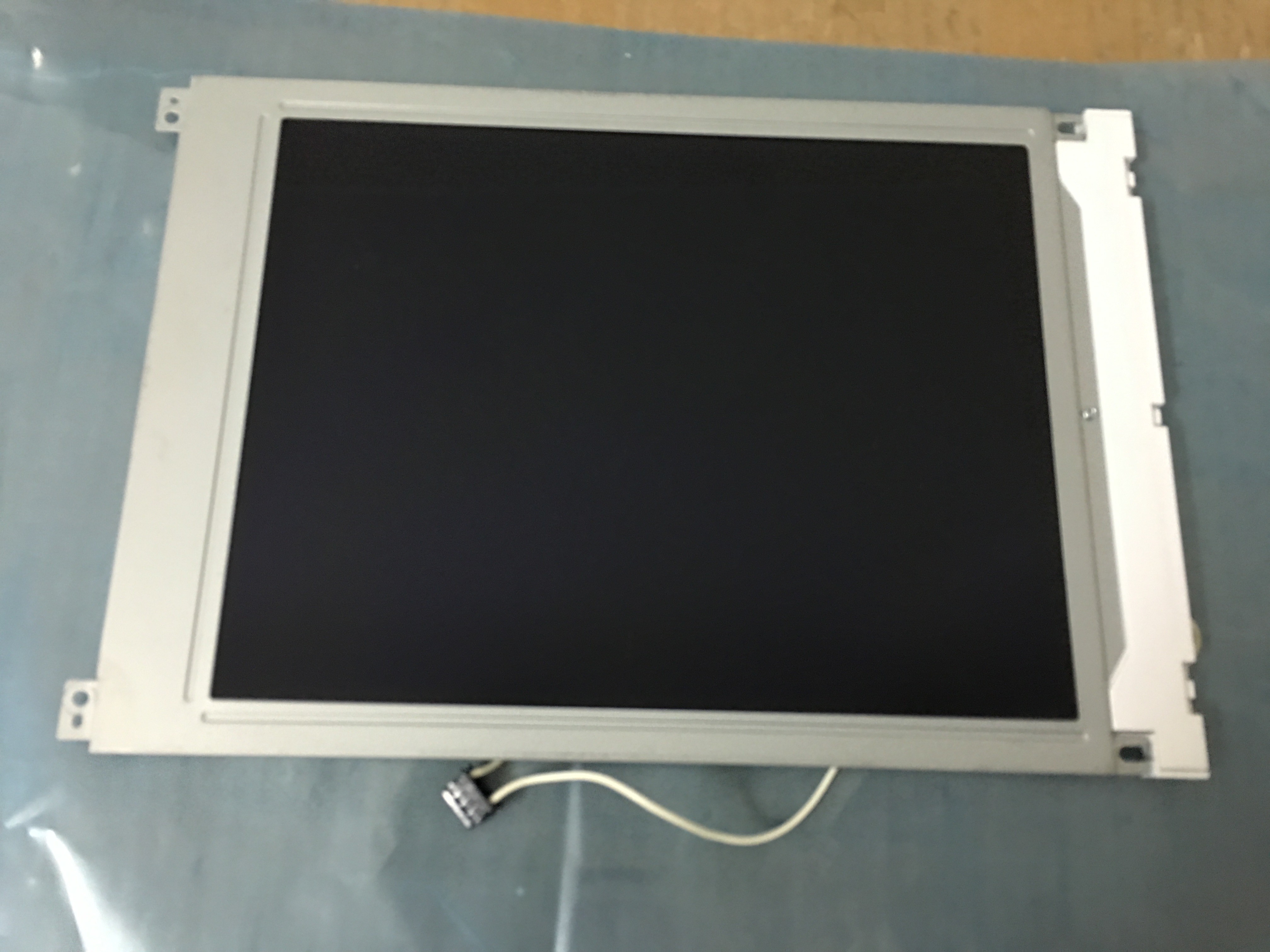

    TCG084SVLQAPNN-AN20-S Kyocera 8.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG084SVLQAPNN-AN20-S
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 50PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    TCG084SVLQAPNN-AN20-S Kyocera 8.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY

    Kyocera TCG084SVLQAPNN-AN20-S Application Details

    Basic Info :
    Panel Brand

    TCG084SVLQAPNN-AN20-SPanel Model
    Diagonal Size
    Application

    a-Si TFT-LCD , LCMPanel Type
    Model Alias
    -
    Reliability :
    Operating Temp.
    -20 ~ 70 °C
    Storage Temp.
    -30 ~ 80 °C
    RoHS State

    -Vibration Rating

    Kyocera TCG084SVLQAPNN-AN20-S Mechanical Details

    Pixel Features :
    Pixel Format
    800(RGB)×600, SVGA
    Dot Pitch
    0.071×0.213 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.213×0.213 mm (H×V) [119PPI]
    Mechanical Size :
    Display Area
    170.4×127.8 mm (H×V)
    Bezel Area
    174.4×131.8 mm (H×V)
    Outline Dim.
    199.5×147.4 mm (H×V)
    Outline Depth
    9.0 mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    4:3 (H:V)
    Shape Style
    Holes & Brackets :
    Face mounting holes
    Other Features :
    Weight
    315g
    Surface
    Antiglare

    Kyocera TCG084SVLQAPNN-AN20-S Optical Details

    Basic Information :
    Brightness
    400 cd/m² (Typ.)
    Contrast Ratio
    500:1 (Typ.) (Transmissive)
    Viewing Angle
    85/85/85/85 (Typ.)(CR≥10)
    Optical Mode
    AWV, Normally Black, Transmissive
    Viewing Direction
    Symmetry
    Response Time
    18/12 (Typ.)(Tr/Td) ms
    Color Performance :
    Chromaticity
    Wx:0.310; Wy:0.325
    Color Numbers
    16.2M (6-bit + FRC)
    Color Temperature
    6685K
    Uniformity
    -
    1931 Color Gamlt :
    NTSC Ratio
    50%
    sRGB
    70% coverage
    Adobe RGB
    53% coverage
    DCI-P3
    52% coverage
    Rec.2020
    38% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera TCG084SVLQAPNN-AN20-S Electronics Details

    Frame Frequency :
    60Hz
    Reverse Scan :
    No

    Kyocera TCG084SVLQAPNN-AN20-S Backlight Details

    Back-light Features :
    Lamp Type
    WLED
    Amount
    -
    Life Time
    50K(Typ.) (Hours)
    Replacement
    -
    Lamp Shape
    -
    Position
    Edge light type
    Interface Features :
    Type
    Included in panel signal interface
    Position
    -
    Lamp Driver
    -
    Driver Electrical :
    Voltage Input
    12.0±1.2V
    Current Input
    330/500mA (Typ./Max.)

      Kyocera TCG084SVLQAPNN-AN20-S Interface Detail

      Signal Systerm :
      LVDS (1 ch, 8-bit)
      Logic Voltage
      -
      Signal Electrical :
      Voltage Input
      3.3V (Typ.)
      Current Input
      270/330mA (Typ./Max.)
      Interface Features :
      Type
      Connector
      Position
      -
      Connector Detail :
      Brand
      Model
      Pin Pitch
      Pins
      Amount
      Configuration
      JAE
      1.0 mm
      30 pins
      1 pcs
