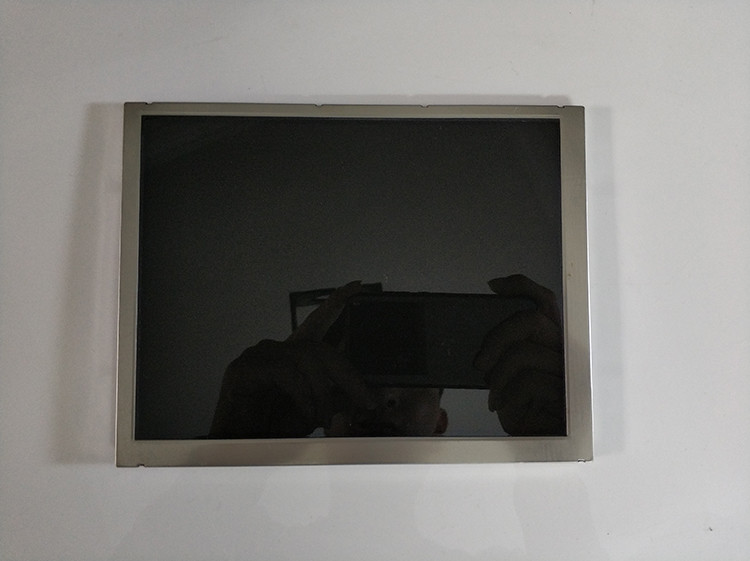

    TCG075VGLDA-H50 Kyocera 7.5INCH LCM 640×480RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG075VGLDA-H50
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 50PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    TCG075VGLDA-H50 Kyocera 7.5INCH LCM 640×480RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY

    Kyocera TCG075VGLDA-H50 Application Details

    Basic Info :
    Panel Brand

    TCG075VGLDA-H50Panel Model
    Diagonal Size
    7.5"
    Application

    a-Si TFT-LCD , LCMPanel Type
    Model Alias
    -
    Reliability :
    Operating Temp.
    -20 ~ 70 °C
    Storage Temp.
    -30 ~ 80 °C
    RoHS State

    -Vibration Rating

    Kyocera TCG075VGLDA-H50 Mechanical Details

    Pixel Features :
    Pixel Format
    640(RGB)×480, VGA
    Dot Pitch
    0.079×0.237 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.237×0.237 mm (H×V) [107PPI]
    Mechanical Size :
    Display Area
    151.68×113.76 mm (H×V)
    Bezel Area
    156.3×118.4 mm (H×V)
    Outline Dim.
    173×133 mm (H×V)
    Outline Depth
    6.35±0.5 mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    4:3 (H:V)
    Shape Style
    Other Features :
    Weight
    205g (Typ.)
    Surface
    Glare (Haze 0%)

    Kyocera TCG075VGLDA-H50 Optical Details

    Basic Information :
    Brightness
    400 cd/m² (Typ.)
    Contrast Ratio
    500:1 (Typ.) (Transmissive)
    Viewing Angle
    80/80/80/80 (Typ.)(CR≥5)
    Optical Mode
    TN, Normally White, Transmissive
    Viewing Direction
    -
    Response Time
    15/20 (Typ.)(Tr/Td) ms
    Color Performance :
    Chromaticity
    Wx:0.320; Wy:0.340
    Color Numbers
    262K (6-bit)
    Color Temperature
    6066K
    Uniformity
    -
    1931 Color Gamlt :
    NTSC Ratio
    52%
    sRGB
    71% coverage
    Adobe RGB
    55% coverage
    DCI-P3
    54% coverage
    Rec.2020
    39% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera TCG075VGLDA-H50 Electronics Details

    Reverse Scan :
    Yes (U/D, L/R)

    Kyocera TCG075VGLDA-H50 Backlight Details

    Back-light Features :
    Lamp Type
    WLED
    Amount
    4 strings
    Life Time
    50K(Typ.) (Hours)
    Replacement
    -
    Lamp Shape
    4 strings
    Position
    Edge light type
    Lamp Electrical :
    Voltage Input
    27.5/29.3V (Typ./Max.)
    Current Input
    13.5mA (Typ.)
    Interface Features :
    Type
    Included in panel signal interface
    Position
    -
    Lamp Driver
    No

      Kyocera TCG075VGLDA-H50 Interface Detail

      Signal Systerm :
      Parallel RGB (1 ch, 6-bit)
      Logic Voltage
      -
      Signal Electrical :
      Voltage Input
      3.3V (Typ.)
      Current Input
      160/210mA (Typ./Max.)
      Interface Features :
      Type
      Connector
      Position
      -
      Connector Detail :
      Brand
      Model
      Pin Pitch
      Pins
      Amount
      Configuration
      IRISO
      IMSA-9681S-40A-GF
      0.5 mm
      40 pins
      1 pcs


      FAQ:
      Q1: What's the quality of your LCD Panel?
      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
      Q2: What is your return and refund policy?
      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
      Q3: How long is the lead time?
      A: The lead time is about 1-3 working days after receipt of payment.
      Q4: How can I get the quotation?
      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
