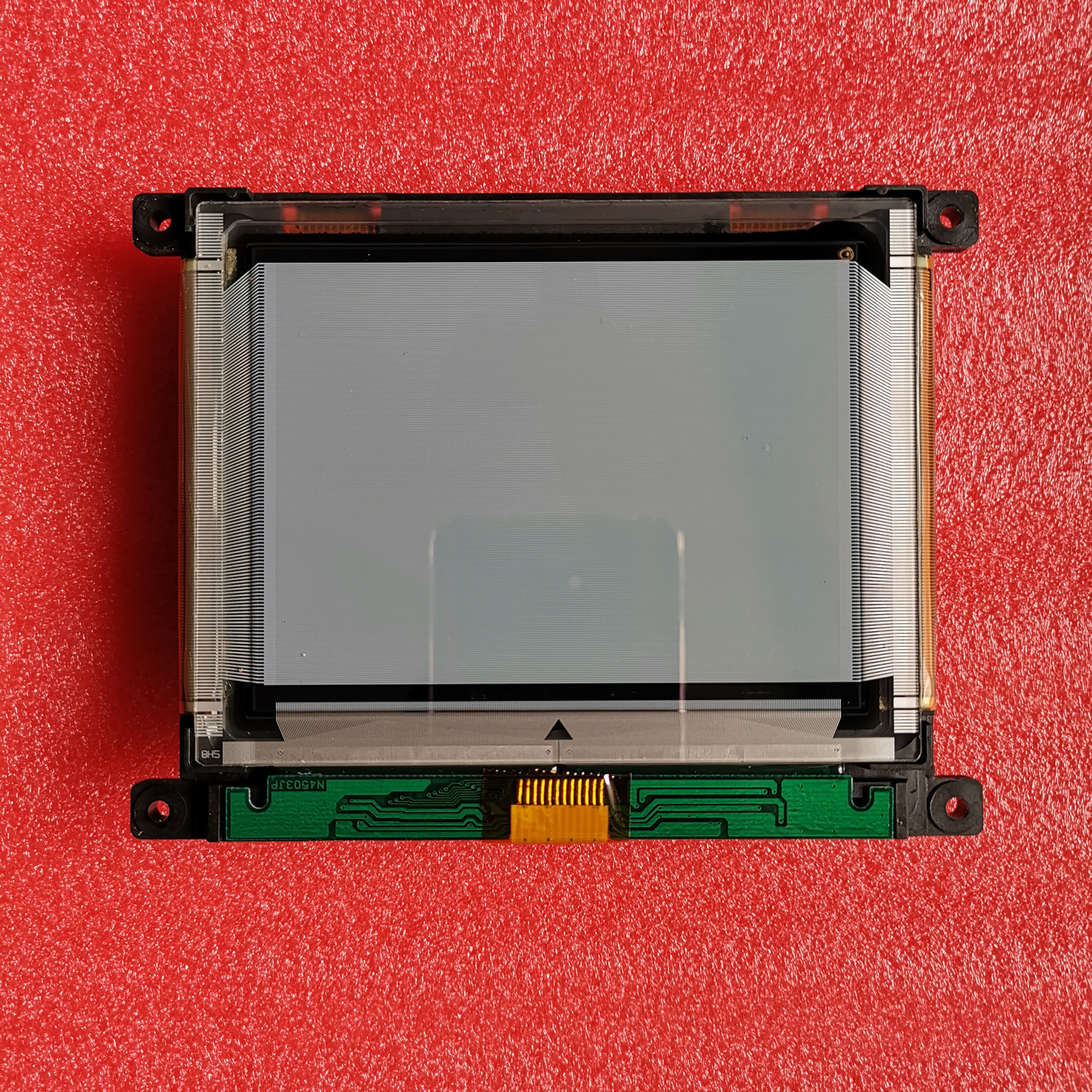

    F-51477GNF-LW-AG Kyocera 4.7INCH LCM 320×240RGB 280NITS WLED INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : F-51477GNF-LW-AG
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 50PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    F-51477GNF-LW-AG Kyocera 4.7INCH LCM 320×240RGB 280NITS WLED INDUSTRIAL LCD DISPLAY

    OPTREX F-51477GNF-LW-AG Application Features

    Basic Information :ManufacturerPanel ModelPanel TypeAlias
    F-51477GNF-LW-AGFSTN-LCD , LCM-
    Environment :RoHS StateOperating Temp.Storage Temp.Vibration Level
    0 ~ 50 °C-20 ~ 60 °C-

    OPTREX F-51477GNF-LW-AG Optical Features

    Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
    280 (Typ.)-250/140 (Typ.)(Tr/Td)
    Best View onDisplay ModeContrast Ratio
    6 o'clockSTN, Black/White (Positive), Transflective20 : 1 (Typ.) (Transmissive)
    Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
    -Monochrome-
    Performance :3D TechSunlight VisibilityReflectance
    -Sunlight Readable-

    OPTREX F-51477GNF-LW-AG Mechanical Features

    Panel Size :4.7"
    Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
    320×240 [QVGA]Rectangle0.300×0.300 [84PPI]0.300×0.300
    Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
    95.97(H) × 71.97(V)-129.4(H) × 94(V)8.8 (Max.) mm
    Outline Features :Form FactorOrientationAspect RatioShape Style
    Flat RectangleLandscape type4:3 (H:V)
    Other Detail :WeightPanel CoverTreatment
    110g (Max.)--

    OPTREX F-51477GNF-LW-AG Electronics Features

    Reverse Scan :No
    Vertical Frequency :70Hz
    Driving Method :Duty: 1/240 , Bias: 1/14

    OPTREX F-51477GNF-LW-AG Backlight Features

    Lamp Features:TypePositionQuantityShapeLife(Hours)Lamp Exchange
    WLEDEdge light type----
    WLED Electrical :Voltage SupplyCurrent SupplyPower
    21.0V (Typ.)15mA (Typ.)
    Interface Features :PositionBacklight DriverType
    -With LED DriverIncluded in panel signal interface

    OPTREX F-51477GNF-LW-AG Interface Features

    Panel Driving Electrical :Voltage SupplyCurrent SupplyPower
    5.0V (Typ.)(With LED Backlight)120/180mA (Typ./Max.)-
    Interface Features :PositionSignalType
    -Parallel Data (4-bit)FPC
    FPC Detail :BrandModelPin PitchPin AmountQuantityConfiguration
    14 pins1 pcs

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


    F-51477GNF-LW-AG Kyocera 4.7INCH LCM 320×240RGB 280NITS WLED INDUSTRIAL LCD DISPLAYF-51477GNF-LW-AG Kyocera 4.7INCH LCM 320×240RGB 280NITS WLED INDUSTRIAL LCD DISPLAY
