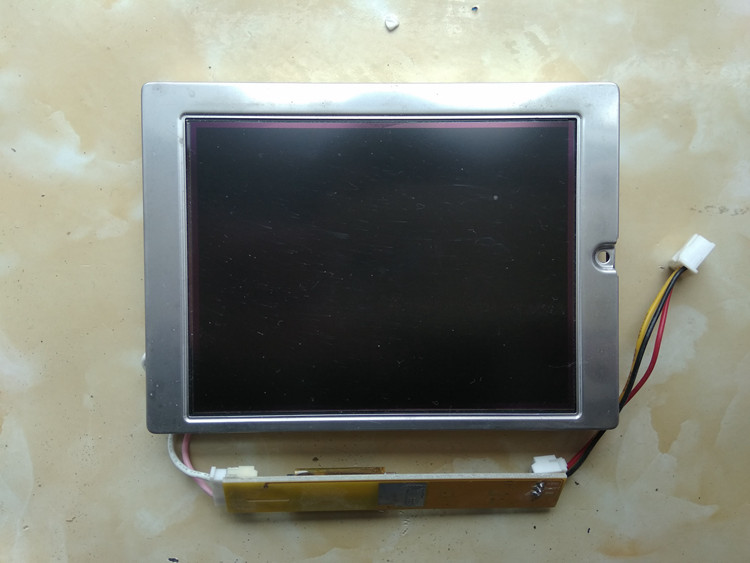

F-51477GNF-SLY-ALN Kyocera 4.7INCH LCM 320×240RGB 150NITS YG-LED INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap F-51477GNF-SLY-ALN Kyocera 4.7INCH LCM 320×240RGB 150NITS YG-LED INDUSTRIAL LCD DISPLAY from wholesalers

    Buy cheap F-51477GNF-SLY-ALN Kyocera 4.7INCH LCM 320×240RGB 150NITS YG-LED INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap F-51477GNF-SLY-ALN Kyocera 4.7INCH LCM 320×240RGB 150NITS YG-LED INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap F-51477GNF-SLY-ALN Kyocera 4.7INCH LCM 320×240RGB 150NITS YG-LED INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap F-51477GNF-SLY-ALN Kyocera 4.7INCH LCM 320×240RGB 150NITS YG-LED INDUSTRIAL LCD DISPLAY from wholesalers

    F-51477GNF-SLY-ALN Kyocera 4.7INCH LCM 320×240RGB 150NITS YG-LED INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : F-51477GNF-SLY-ALN
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 100PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    F-51477GNF-SLY-ALN Kyocera 4.7INCH LCM 320×240RGB 150NITS YG-LED INDUSTRIAL LCD DISPLAY

    OPTREX F-51477GNF-SLY-ALN Application Details

    Basic Information :BrandModelF-51477GNF-SLY-ALN
    TypeLCM FSTN-LCDUsed For
    Screen Size4.7"Alias-
    Environment :Storage Temp.-20 ~~ 60 °COperating Temp.0 ~~ 50 °C
    RoHSVibration-

    OPTREX F-51477GNF-SLY-ALN Mechanical Details

    Pixel Features :Resolution320×240, QVGADot Pitch(mm)0.300×0.300 (H×V)
    Pixel FormatRectanglePixel Pitch(mm)0.300×0.300 (H×V) [84PPI]
    Mechanical Size :Active Area(mm)95.97(H) × 71.97(V)Bezel Area(mm)-
    Outline Dim.(mm)129.4(H) × 94(V)Depth(mm)6.0 (Max.)
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio4:3 (H:V)OrientationLandscape type
    Other Spec :Weight102g (Max.)Treatment-

    OPTREX F-51477GNF-SLY-ALN Optical Details

    Basic Information :Luminance(cd/m²)150 (Typ.)Contrast Ratio4:1 (Typ.) (Transmissive)
    Viewing Angle-Display ModeSTN, Black/White (Positive), Transflective
    Best View on6 o'clockResponse(ms)360/280 (Typ.)(Tr/Td)
    Color Performance :White Coordinate-Display ColorsMonochrome
    Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmissivity-

    OPTREX F-51477GNF-SLY-ALN Electronics Details

    Frame Rate :70Hz
    Reverse Scan :No

    OPTREX F-51477GNF-SLY-ALN Interface Details

    Signal Electrical :Voltage Supply5.0V (Typ.)Current Supply0.1/0.15mA (Typ./Max.)
    Signal Type :Parallel Data (4-bit)Signal Voltage-
    Interface Features :Position-TypeFPC
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    1 pcs23 pins0.5 mm

    OPTREX F-51477GNF-SLY-ALN Backlight Details

    Backlight Features:Shape-TypeYG-LEDPositionEdge light type
    Replacement-Quantity-Life Time-
    Lamp Electrical :Voltage Supply4.4/5.2V (Typ./Max.)Current Supply180mA (Typ.)
    Interface Features :Position-TypeIncluded in panel signal interface
    Backlight Driver :No

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


    F-51477GNF-SLY-ALN Kyocera 4.7INCH LCM 320×240RGB 150NITS YG-LED INDUSTRIAL LCD DISPLAYF-51477GNF-SLY-ALN Kyocera 4.7INCH LCM 320×240RGB 150NITS YG-LED INDUSTRIAL LCD DISPLAY
