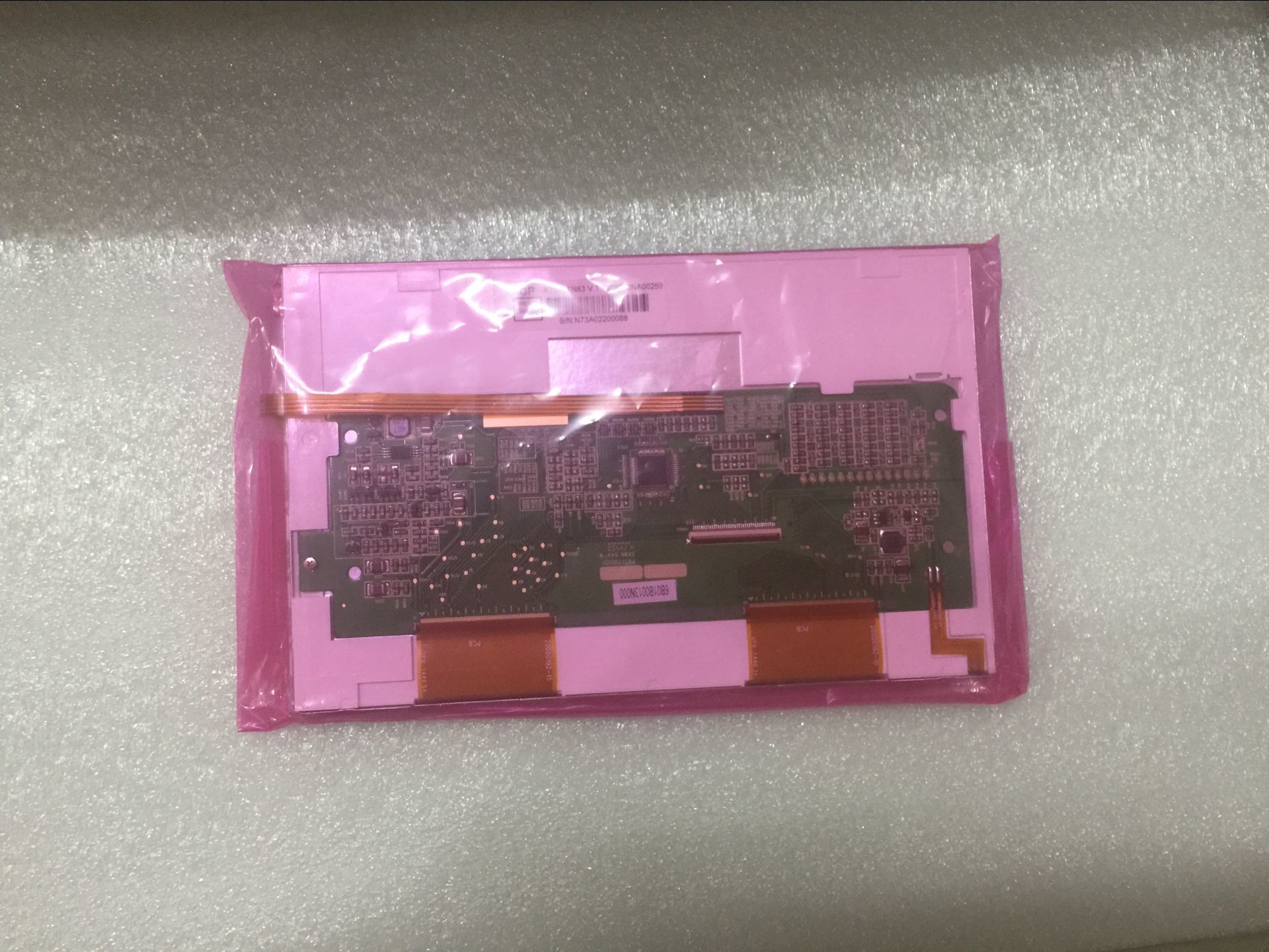

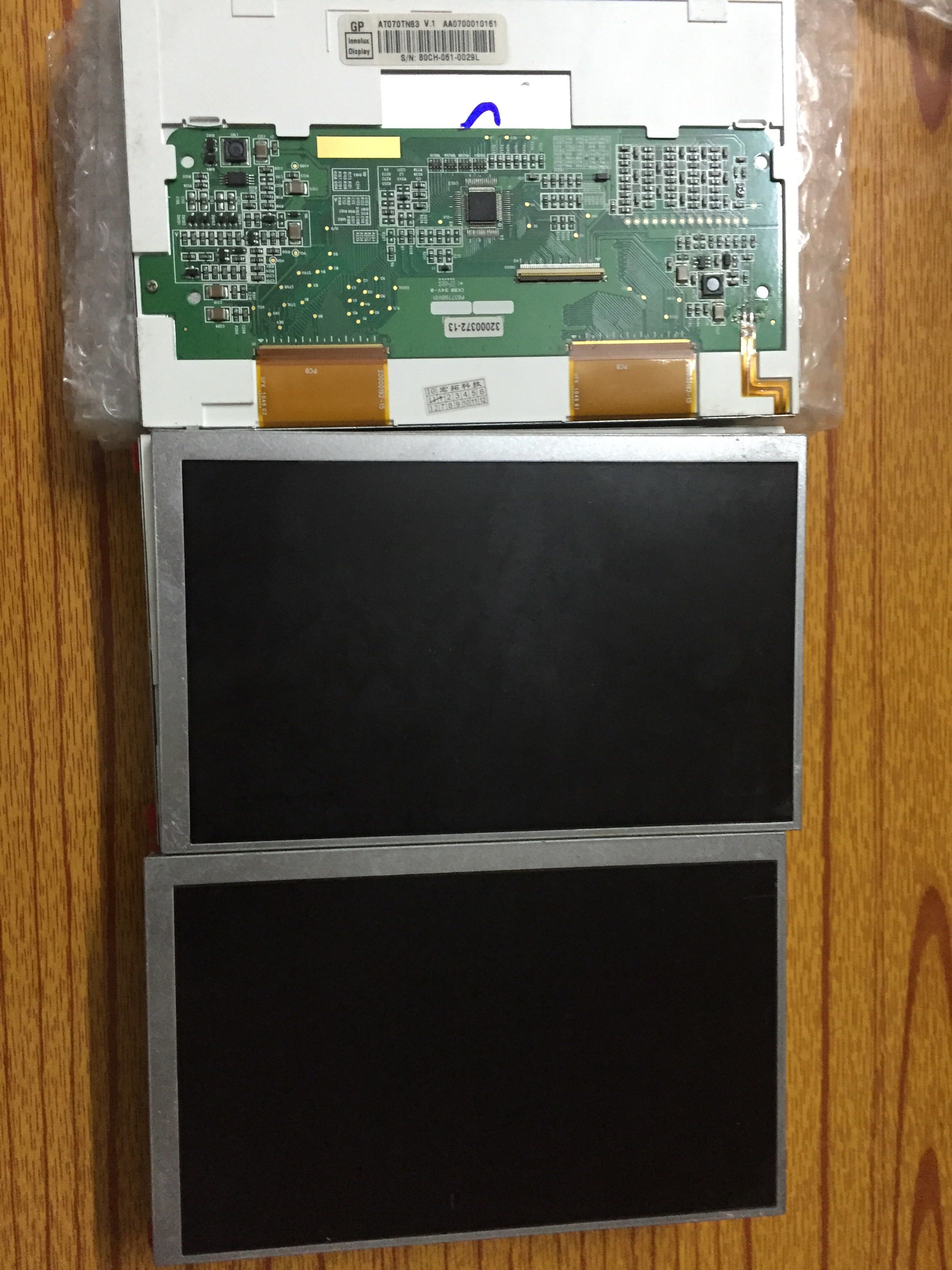

    TCG070WVLQEPNN-AN20 Kyocera 7INCH LCM 800×480RGB 350NITS WLED LVDS INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG070WVLQEPNN-AN20
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 100PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    TCG070WVLQEPNN-AN20 Kyocera 7INCH LCM 800×480RGB 350NITS WLED LVDS INDUSTRIAL LCD DISPLAY

    Kyocera TCG070WVLQEPNN-AN20 Application Features

    Basic Information :BrandModelTypeModel Alias
    TCG070WVLQEPNN-AN20a-Si TFT-LCD , LCM-
    Reliability :RoHSOperating TemperatureStorage TemperatureVibration Resistance
    -20 ~ 70 °C-30 ~ 80 °C-

    Kyocera TCG070WVLQEPNN-AN20 Mechanical Features

    Panel Size :7.0 inch
    Pixel Features :ResolutionPixel ArrangementDot Pitch (W×H)Pixel Pitch (W×H)
    800(RGB)×480, WVGARGB Vertical Stripe0.0635×0.1905 mm0.1905×0.1905 mm [133PPI]
    Mechanical Size :Active Area (W×H)Bezel Area (W×H)Outline Dimension (W×H)Outline Depth
    152.4×91.44 mm154.4×93.4 mm165×104.4 mm8.6±0.5 mm
    Outline Features :Form StyleAspect RatioOrientationShape Style
    Flat Rectangle15:9 (W : H)Landscape type
    Fixation :Without
    Other Features :Panel CoverWeightSurface
    -205gAntiglare

    Kyocera TCG070WVLQEPNN-AN20 Optical Features

    Basic Information :BrightnessOperating ModeContrast Ratio
    350 cd/m² (Typ.)AWV, Normally Black, Transmissive650:1 (Typ.) (Transmissive)
    Viewing Angle(L/R/U/D)Viewing DirectionResponse Speed
    85/85/85/85 (Typ.)(CR≥10)Symmetry18/12 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color TemperatureColor AmountWhite color Chromaticity
    6685K262K/16.2M (6-bit / 6-bit + FRC)X:0.310; Y:0.325
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    50%70%53%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    52%38%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera TCG070WVLQEPNN-AN20 Electronics Features

    Power Consumption :3.48W (Typ.)
    Frame Rate :60Hz
    Reverse Scan :Yes (180°)

    Kyocera TCG070WVLQEPNN-AN20 Interface Features

    Signal Electrical :Current InputVoltage InputConsumption
    200/260mA (Typ./Max.)3.3V (Typ.)0.66W (Typ.)
    Interface Features :PositionTypeInterface
    -ConnectorLVDS (1 ch, 6/8-bit)
    Signal Interface :BrandModelAmountPin PitchPinsPin Assignment
    HRSMDF76GW-30S-1H(55)1 pcs1.0 mm30 pins

    Kyocera TCG070WVLQEPNN-AN20 Backlight Features

    Backlight Features:TypePositionShapeAmountLife(Hours)Replacement
    WLEDEdge light type--100K(Typ.)-
    Interface Features :PositionTypeWLED Driver
    -Included in panel signal interfaceWith LED Driver
    Driver Electrical :Current InputVoltage InputConsumption
    235/400mA (Typ./Max.)12.0±1.2V2.82W (Typ.)

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


    TCG070WVLQEPNN-AN20 Kyocera 7INCH LCM 800×480RGB 350NITS WLED LVDS INDUSTRIAL LCD DISPLAYTCG070WVLQEPNN-AN20 Kyocera 7INCH LCM 800×480RGB 350NITS WLED LVDS INDUSTRIAL LCD DISPLAY
