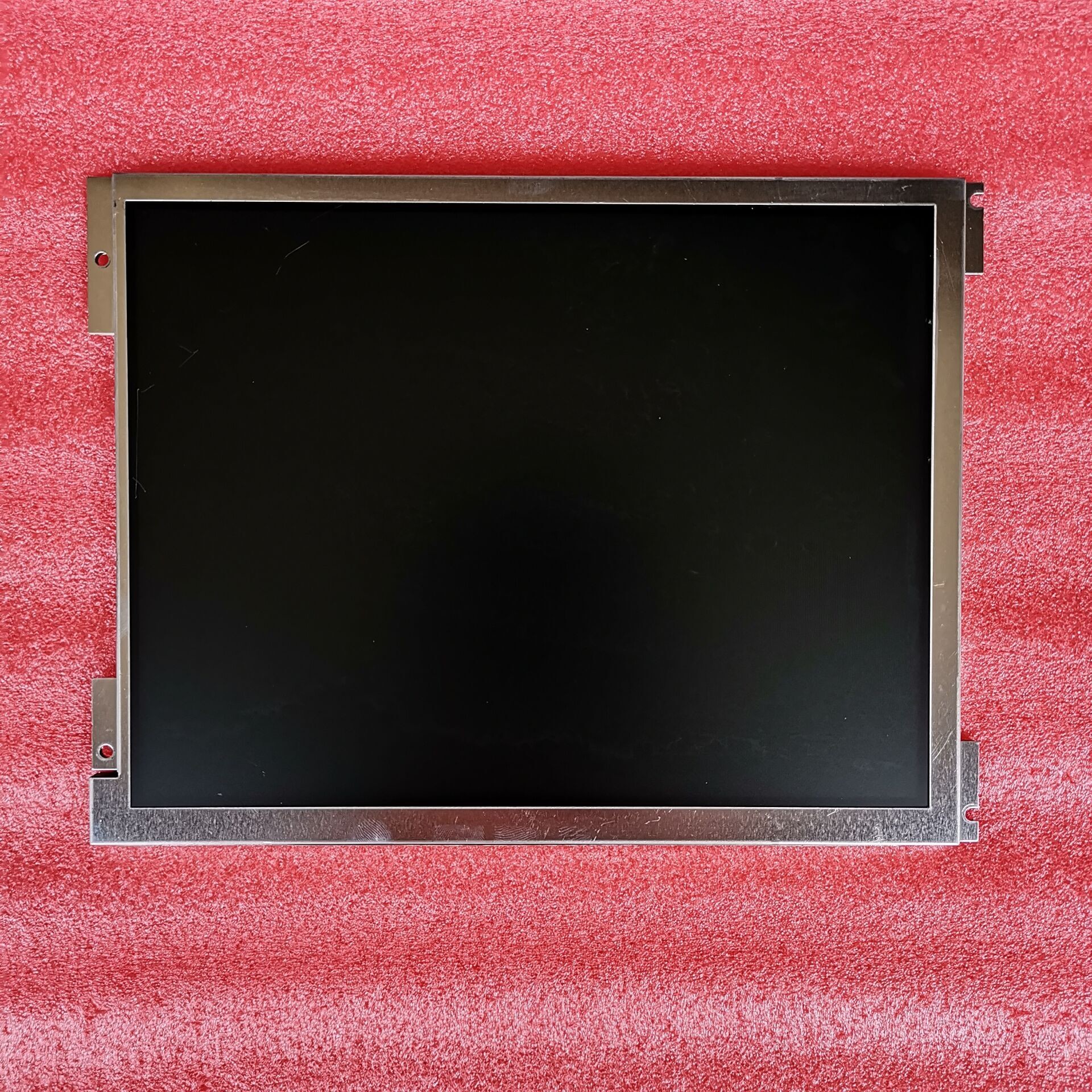

    TCG121WXLPAPNN-AN20-S Kyocera 12.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG121WXLPAPNN-AN20-S
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 50PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    TCG121WXLPAPNN-AN20-S Kyocera 12.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

    Kyocera TCG121WXLPAPNN-AN20-S Application Details

    Basic Information :BrandModelTCG121WXLPAPNN-AN20-S
    TypeLCM a-Si TFT-LCDUsed For
    Screen Size12.1"Alias-
    Environment :Storage Temp.-30 ~~ 80 °COperating Temp.-20 ~~ 70 °C
    RoHSVibration-

    Kyocera TCG121WXLPAPNN-AN20-S Mechanical Details

    Pixel Features :Resolution1280(RGB)×800, WXGADot Pitch(mm)0.068×0.204 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.204×0.204 (H×V) [124PPI]
    Mechanical Size :Active Area(mm)261.12(H) × 163.2(V)Bezel Area(mm)264.1(H) × 166.2(V)
    Outline Dim.(mm)277.7(H) × 182.5(V)Depth(mm)9.8 (Typ.)
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio16:10 (H:V)OrientationLandscape type
    Mounting :Side mounting holes (4-M2) on left, right bezel
    Other Spec :Weight680g (Typ.)TreatmentAntiglare

    Kyocera TCG121WXLPAPNN-AN20-S Optical Details

    Basic Information :Luminance(cd/m²)500 (Typ.)Contrast Ratio750:1 (Typ.) (Transmissive)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)Display ModeAWV, Normally Black, Transmissive
    Best View onSymmetryResponse(ms)18/12 (Typ.)(Tr/Td)
    Color Performance :White CoordinateX:0.300; Y:0.335Display Colors16.2M (6-bit + FRC)
    Color Temperature7136KWhite Uniformity-
    1931 Color Gamlt :NTSC Ratio50%sRGB70% coverage
    Adobe RGB53% coverageDCI-P352% coverage
    Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera TCG121WXLPAPNN-AN20-S Electronics Details

    Frame Rate :60Hz
    Reverse Scan :Yes (180°)

    Kyocera TCG121WXLPAPNN-AN20-S Interface Details

    Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply375/490mA (Typ./Max.)
    Signal Type :LVDS (1 ch, 8-bit)Signal Voltage-
    Interface Features :Position-TypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    HRSDF19L-20P-1H1 pcs20 pins1.0 mm

    Kyocera TCG121WXLPAPNN-AN20-S Backlight Details

    Backlight Features:Shape-TypeWLEDPositionEdge light type
    Replacement-Quantity-Life Time50K(Typ.) (Hours)
    Interface Features :Position-TypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    JSTSM08B-SHLS-G-TF(LF)(SN)1 pcs8 pins1.0 mm
    Backlight Driver :With LED Driver
    Driver Electrical :Voltage Supply12.0V (Typ.)Current Supply460/600mA (Typ./Max.)

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


    TCG121WXLPAPNN-AN20-S Kyocera 12.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAYTCG121WXLPAPNN-AN20-S Kyocera 12.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY
