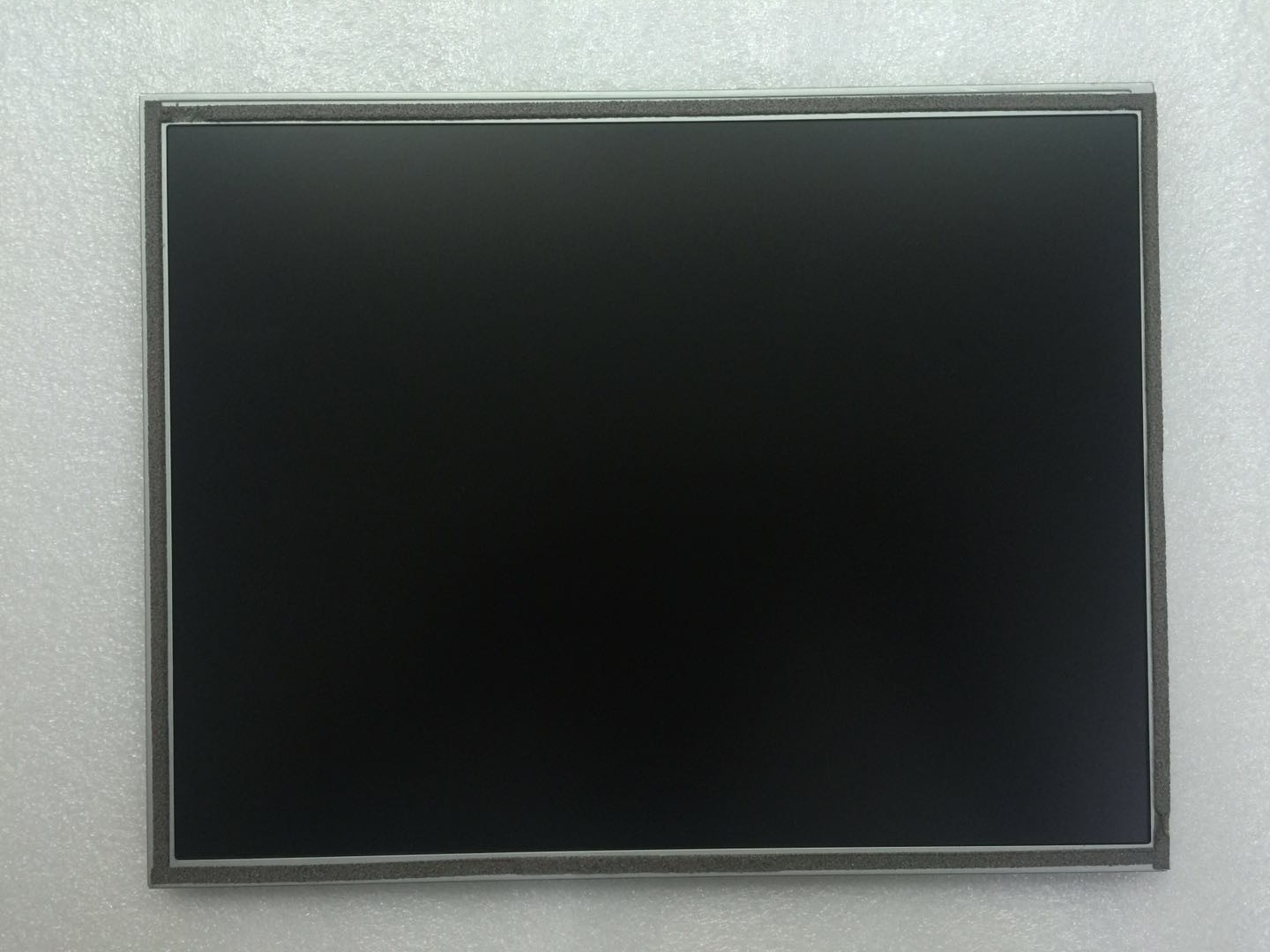

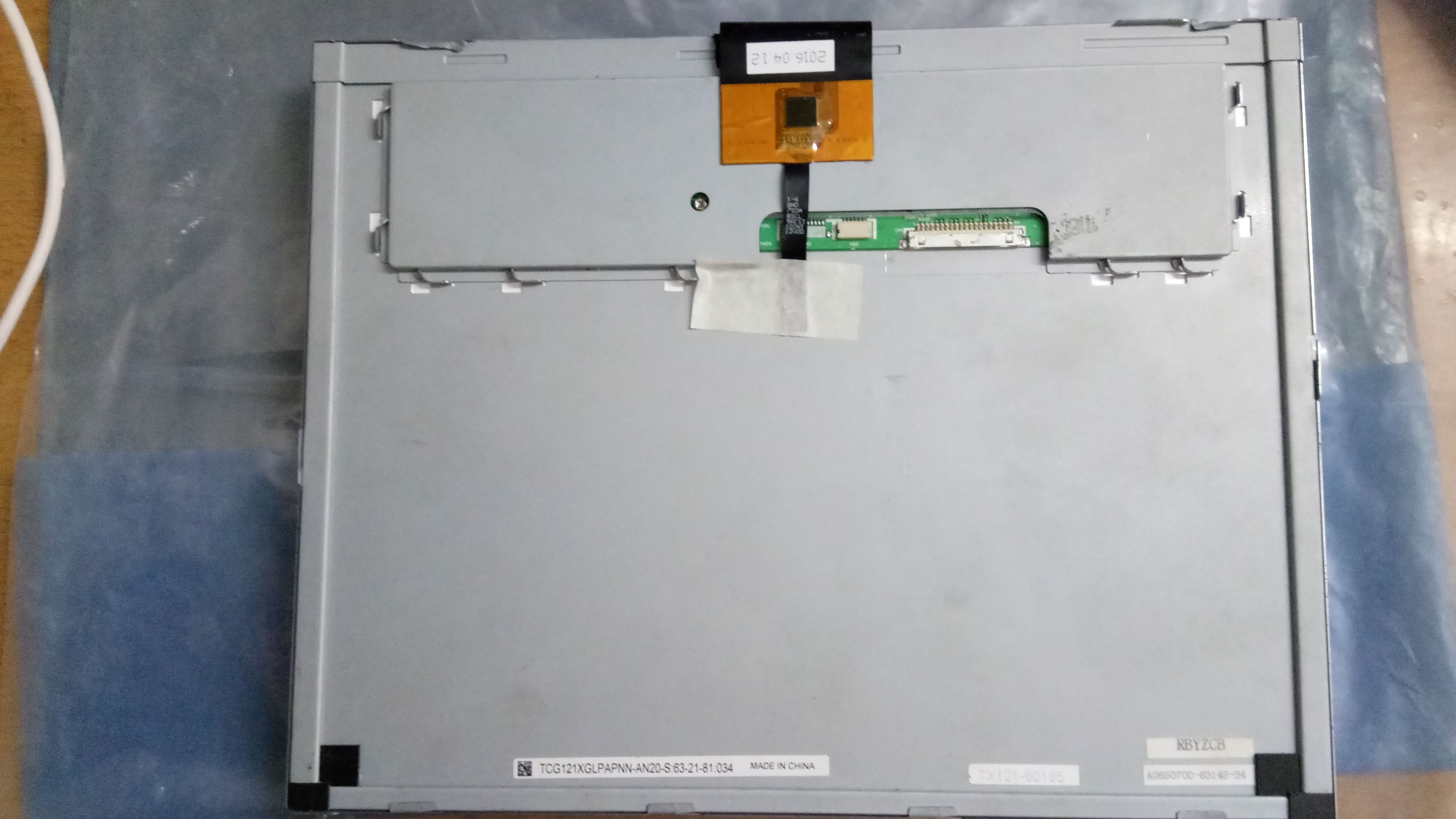

    TCG121XGLPAPNN-AN20-S Kyocera 12.1INCH LCM 1024×768RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : TCG121XGLPAPNN-AN20-S
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 100PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    TCG121XGLPAPNN-AN20-S Kyocera 12.1INCH LCM 1024×768RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

    Kyocera TCG121XGLPAPNN-AN20-S Application Details

    Basic Detail :ManufacturerModel NameTCG121XGLPAPNN-AN20-S
    Panel Typea-Si TFT-LCD , LCMAnother Name-
    Panel Size12.1 inchDesigned For
    Maximum Ratings :OP Temperature-30 ~ 80 °CST Temperature-30 ~ 80 °C
    Vibration Level-RoHS

    Kyocera TCG121XGLPAPNN-AN20-S Optical Details

    Basic Information :Luminance500 cd/m² (Typ.)Contrast Ratio750 : 1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed18/12 (Typ.)(Tr/Td) (ms)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeAWV, Normally Black, Transmissive
    Color Performance :ChromaticityWx:0.300; Wy:0.330Support Color262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature7203KWhite Uniformity-
    1931 Color Gamlt :NTSC Ratio51%sRGB71% coverage
    Adobe RGB53% coverageDCI-P353% coverage
    Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Kyocera TCG121XGLPAPNN-AN20-S Mechanical Details

    Pixel Features :Number of Pixel1024(RGB)×768 [XGA]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.080×0.240 mmPixel Pitch(W×H)0.240×0.240 mm [105PPI]
    Physical Size :Active Viewing245.76(W)×184.32(H) mmOverall Dim.260.5(W)×203.4(H) mm
    Bezel Opening249.0(W)×187.5(H) mmOverall Depth10.3±0.5 mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)4:3Shape Style
    Fixation :Side mounting holes (6-M3) on left, right bezel
    Other Detail :Mass670gSurfaceAntiglare

    Kyocera TCG121XGLPAPNN-AN20-S Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (180°)

    Kyocera TCG121XGLPAPNN-AN20-S Interface Details

    Signal Electrical :Input Current300/390mA (Typ./Max.)Input Voltage3.3V (Typ.)
    Consumption-Signal InterfaceLVDS (1 ch, 6/8-bit)
    Interface Features :Position-Physical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    I-PEX20186-020E-11F1 pcs1.25 mm20 pinsLVDS-20P1C8B-010H

      Kyocera TCG121XGLPAPNN-AN20-S Lightting Details

      Lamp Features:Lamp Shape-Lamp TypeWLEDPositionEdge light type
      Exchange-Amount-Life50K(Typ.) (Hours)
      Interface Features :Position-Physical TypeConnector
      Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
      JSTSM06B-SHLS-G-TF(LF)(SN)1 pcs1.0 mm6 pins
      Backlight Driver :With LED Driver
      Driver Electrical :Input Current480/560mA (Typ./Max.)Input Voltage12.0V (Typ.)
