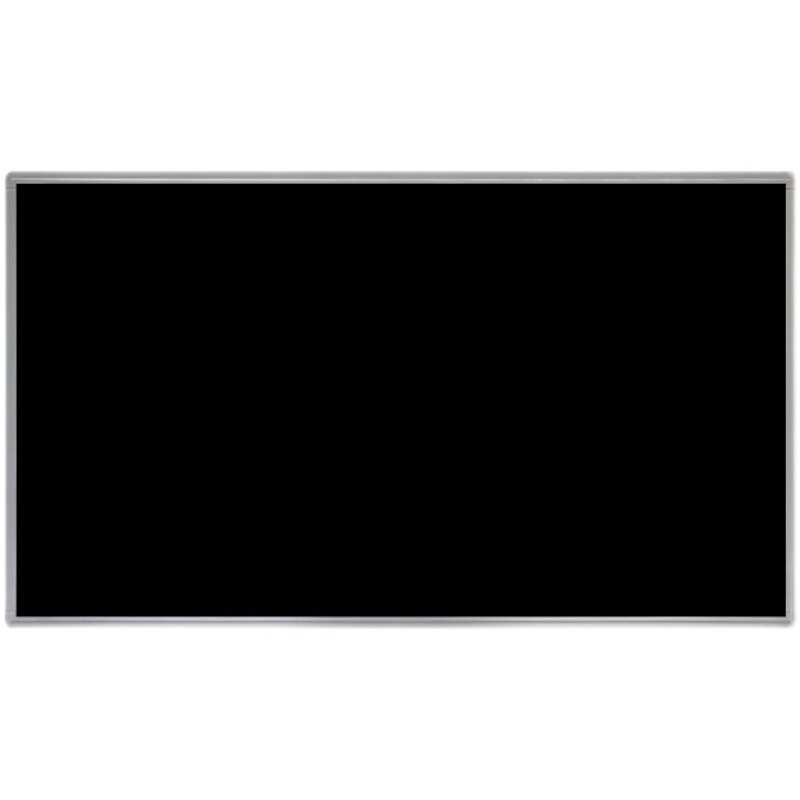

LD980DQD-FGM1 LG Display 98" 3840(RGB)×2160 500 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LD980DQD-FGM1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LD980DQD-FGM1 LG Display 98" 3840(RGB)×2160 500 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LD980DQD-FGM1 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		LD980DQD-FGM1	a-Si TFT-LCD , LCM	LD980DQD (FG)(M1)
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 55 °C

LG Display LD980DQD-FGM1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	500 (Typ.)	89/89/89/89 (Min.)(CR≥10)	8 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	S-IPS, Normally Black, Transmissive	1300 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	9966K	1.06B (8-bit + Dithering)	X:0.281; Y:0.288
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	97%	73%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33 (Max.)(9 points)

LG Display LD980DQD-FGM1 Mechanical Features

Panel Size :	98"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	3840(RGB)×2160 [UHD]	RGB Vertical Stripe	0.5622×0.5622 [45PPI]	0.1874×0.5622
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	2158.85(H) × 1214.35(V)	2162.0(H) × 1217.0(V)	2187.8(H) × 1242.8(V)	38.0/68.6 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	56.0/59.0Kgs (Typ./Max.)	-	Antiglare (Haze 1%), Hard coating (3H)

LG Display LD980DQD-FGM1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Direct light type	-	-	50K(Typ.)	-
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	With LED Driver				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
	YEONHO	20022WR-H14B2	2.0 mm	14 pins	2 pcs
	YEONHO	20022WR-H12B2	2.0 mm	12 pins	2 pcs
Driver Electrical :	Voltage Supply		Current Supply			Power Consumption
Driver Electrical :	24.0±2.4V		18.13/22.24A (Typ.)			435.1/533.85W (Typ./Max.)

LG Display LD980DQD-FGM1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	12.0V (Typ.)		1.51/1.96A (Typ./Max.)			18.1/23.5W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :	-	V-by-One 16 lane				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
	JAE	FI-RE51S-HF	0.5 mm	51 pins	1 pcs
	JAE	FI-RE41S-HF	0.5 mm	41 pins	1 pcs
	YEONHO	20037WR-H05	2.0 mm	5 pins	1 pcs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LD980DQD-FGM1 LG Display 98" 3840(RGB)×2160 500 cd/m² INDUSTRIAL LCD DISPLAY
