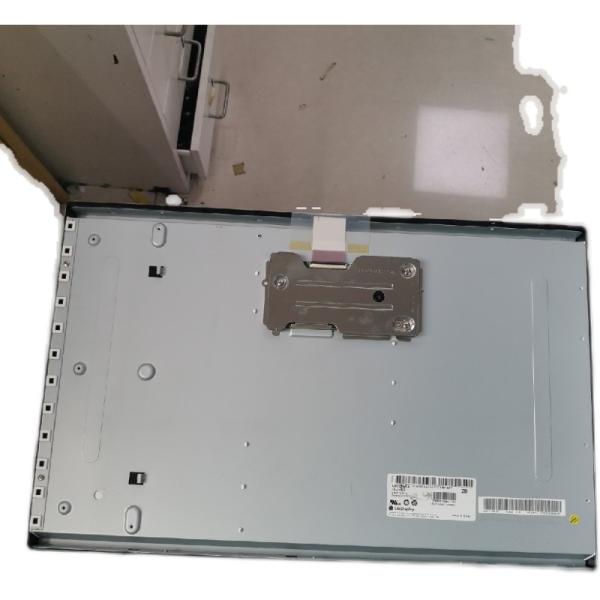

    LM220W1-A2MN LG. LCD 22.0" 1600(RGB)×1024 180 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : LG. LCD
    Model Number : LM220W1-A2MN
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 100PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    LM220W1-A2MN LG. LCD 22.0" 1600(RGB)×1024 180 cd/m² INDUSTRIAL LCD DISPLAY

    LG. LCD LM220W1-A2MN Application Details

    Basic Detail :ManufacturerModel NameLM220W1-A2MN
    Panel Typea-Si TFT-LCD , LCMAnother NameLM220W1 (A2MN)
    Panel Size22.0 inchDesigned For
    Maximum Ratings :OP Temperature0 ~ 50 °CST Temperature-20 ~ 60 °C

    LG. LCD LM220W1-A2MN Optical Details

    Basic Information :Luminance180 cd/m² (Typ.)Contrast Ratio300 : 1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed25/35 (Max.)(Tr/Td) (ms)
    Viewing Angle70/70/70/70 (Typ.)(CR≥10)Operating ModeIPS, Normally Black, Transmissive
    Color Performance :Chromaticity-Support Color16.7M (8-bit)

    LG. LCD LM220W1-A2MN Mechanical Details

    Pixel Features :Number of Pixel1600(RGB)×1024 [WSXGA]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.098×0.294 mmPixel Pitch(W×H)0.294×0.294 mm [86PPI]
    Physical Size :Active Viewing470.4(W)×301.1(H) mmOverall Dim.542(W)×375(H) mm
    Bezel Opening474.4(W)×306.1(H) mmOverall Depth35.3 (Typ.) mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)16:10Shape StyleNormal bezel
    Other Detail :Mass5.00Kgs (Typ.)SurfaceAntiglare, Hard coating (3H)

    LG. LCD LM220W1-A2MN Interface Details

    Signal Electrical :Input Current0.8/1.0A (Typ./Max.)Input Voltage15.0V (Typ.)
    Consumption-Signal InterfaceSingle Link TMDS
    Interface Features :Position-Physical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    molex52515-20111 pcs1.27 mm20 pins
    molex53261-15101 pcs1.25 mm15 pins

    LG. LCD LM220W1-A2MN Lightting Details

    Lamp Features:Lamp ShapeStraightLamp TypeCCFLPosition-
    Exchange-Amount4 pcsLife20K(Typ.) (Hours)
    Lamp Electrical :Input Current3.0/8.0/9.0mA (Min./Typ./Max.)Input Voltage830/860/1070V (Min./Typ./Max.)
    Frequency40/50/60KHz (Min./Typ./Max.)Turn-on Voltage1400/2100V (Min.)(Ta=+25/0℃)
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
    JSTBHSR-02VS-14 pcs3.5 mm2 pinsBLL-2PINS-HL
    Backlight Driver :No

    LG. LCD LM220W1-A2MN Packing Details

    Package Box :AmountSize (L×W×H)Weight
    3 pcs / box494×251×643 mmTBD

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
