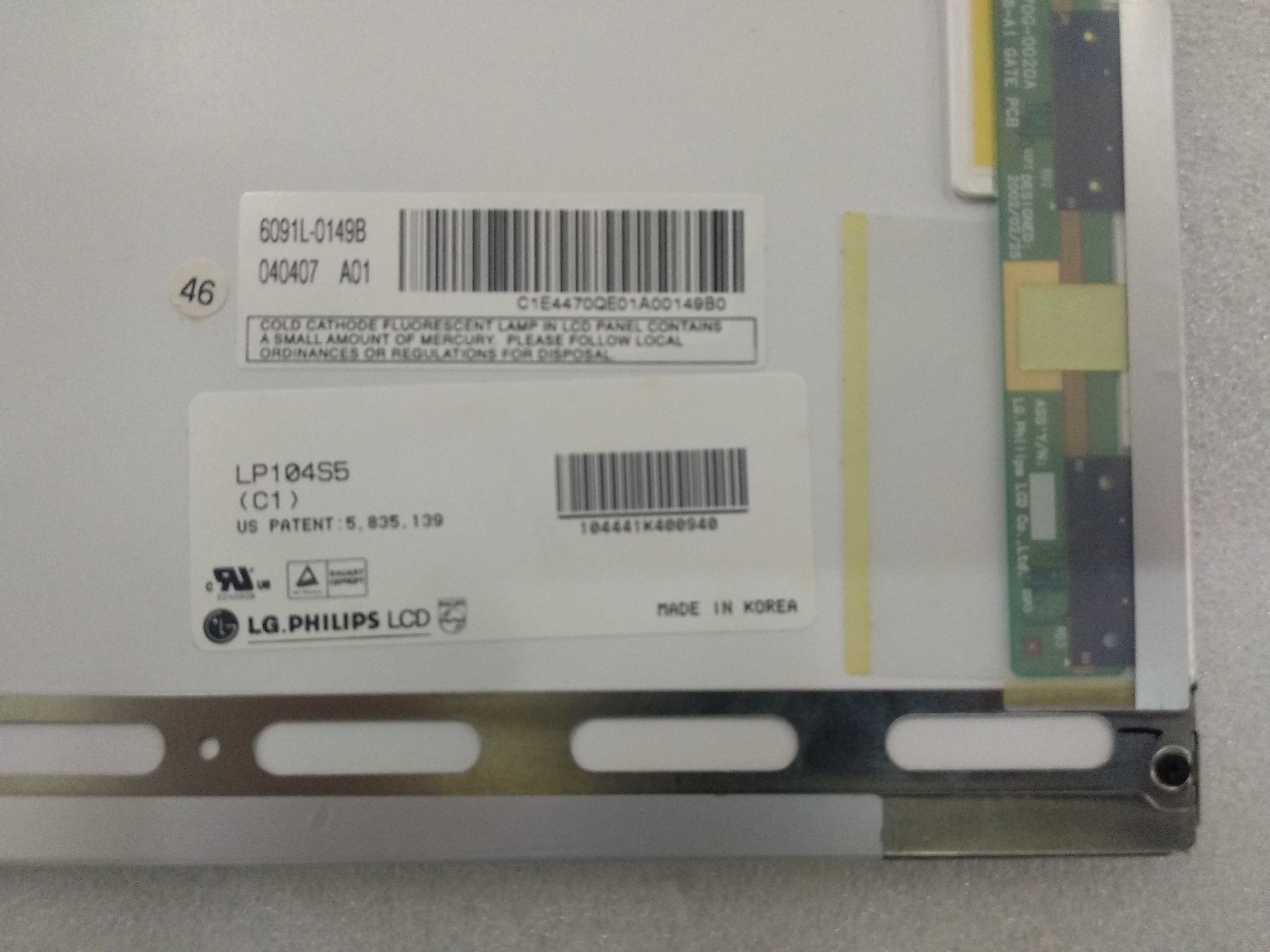

LP104S5-C1 LG. LCD 10.4" 800(RGB)×600 220 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG. LCD
Model Number :	LP104S5-C1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LP104S5-C1 LG. LCD 10.4" 800(RGB)×600 220 cd/m² INDUSTRIAL LCD DISPLAY

LG. LCD LP104S5-C1 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		LP104S5-C1	a-Si TFT-LCD , LCM	LP104S5 (C1)
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C

LG. LCD LP104S5-C1 Mechanical Features

Panel Size :	10.4 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	800(RGB)×600, SVGA	RGB Vertical Stripe	0.088×0.264 mm	0.264×0.264 mm [96PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	211.2×158.4 mm	214.2×161.8 mm	224.5×172 mm	5.7±0.3 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	295g (Typ.)	Antiglare (Haze 13%), Hard coating (3H)

LG. LCD LP104S5-C1 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	220 cd/m² (Typ.)	TN, Normally White, Transmissive	400:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	55/55/40/40 (Min.)(CR≥10)	-	15/30 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	7037K	262K (6-bit)	X:0.305; Y:0.320
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	46%	64%	48%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	48%	34%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG. LCD LP104S5-C1 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	303mA (Typ.)		3.3V (Typ.)			1.0W (Typ.)
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	LVDS (1 ch, 6-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	HRS	DF19K-20P-1H	1 pcs	1.0 mm	20 pins	LVDS-20P1C6B-090A

LG. LCD LP104S5-C1 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	CCFL	Edge light type	Straight	1 pcs	20K(Min.)	-
CCFL Electrical :	Current Input		Voltage Input			Consumption
CCFL Electrical :	6.0mA (Typ.)		500V (Typ.)			3.0W (Typ.)
Interface Features :	Position	Type	CCFL Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	BHSR-02VS-1	1 pcs	3.5 mm	2 pins	BLL-2PINS-HL

LG. LCD LP104S5-C1 Packing Features

Package Carton :	Amount	Weight	Carton Size
Package Carton :	10 pcs / box	-	371×239×300 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
