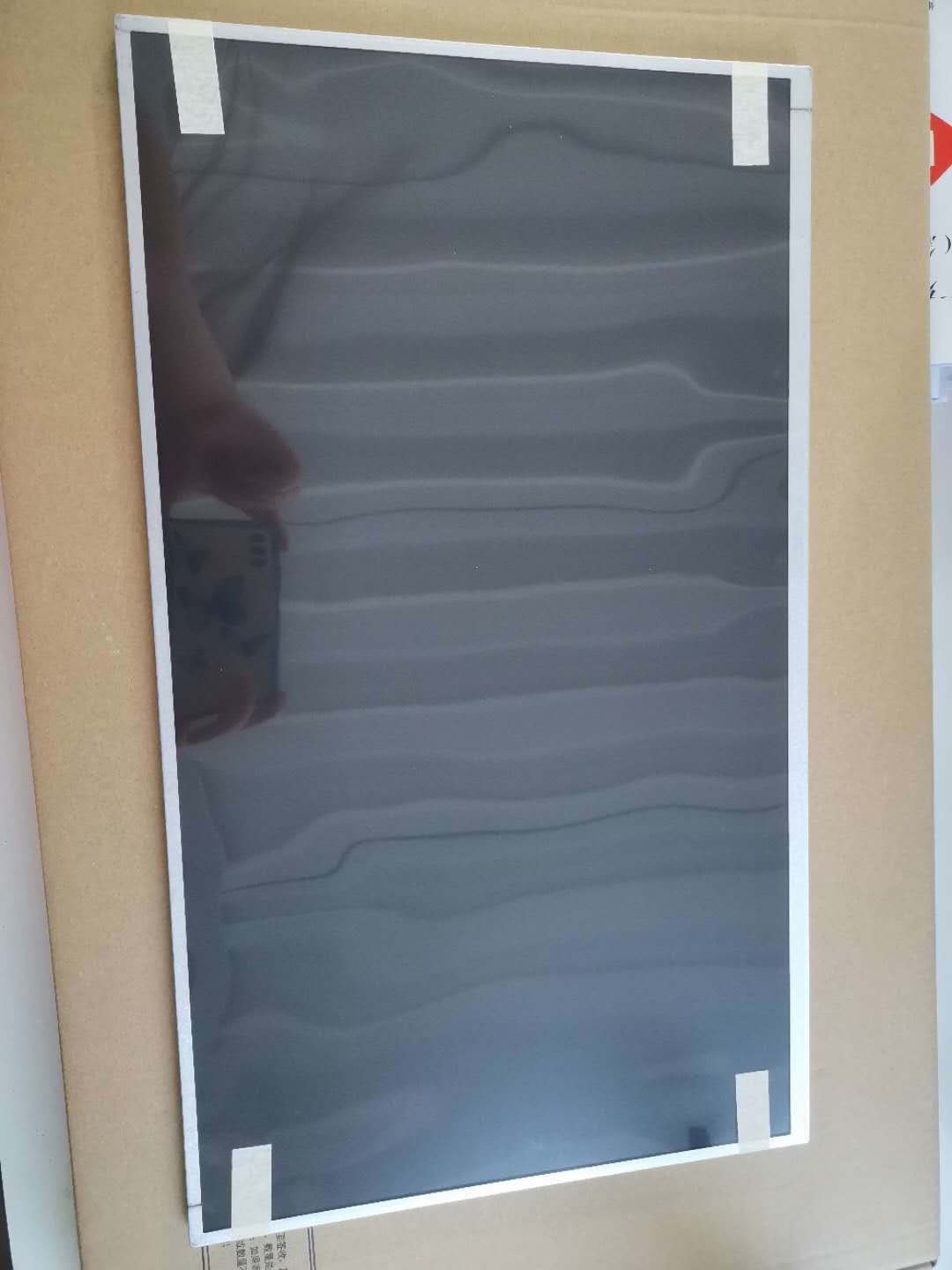

LM238WF1-SLE3 LG Display 23.8" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LM238WF1-SLE3
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	200PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

LM238WF1-SLE3 LG Display 23.8" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LM238WF1-SLE3 Application Details

Basic Detail :	Manufacturer		Model Name	LM238WF1-SLE3
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LM238WF1 (SL)(E3)
	Panel Size	23.8 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG Display LM238WF1-SLE3 Optical Details

Basic Information :	Luminance	250 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	14 (Typ.)(G to G) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	95% coverage
	Adobe RGB	74% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM238WF1-SLE3 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)×1080 [FHD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0915×0.2745 mm	Pixel Pitch(W×H)	0.2745×0.2745 mm [92PPI]
Physical Size :	Active Viewing	527.04(W)×296.46(H) mm	Overall Dim.	543(W)×317.4(H) mm
Physical Size :	Bezel Opening	530.2(W)×299.6(H) mm	Overall Depth	8.4/11.7 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style	Normal bezel
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Mass	2.27/2.39Kgs (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

LG Display LM238WF1-SLE3 Interface Details

Signal Electrical :	Input Current	480/600mA (Typ./Max.)		Input Voltage	5.0V (Typ.)
Signal Electrical :	Consumption	2.4/3.0W (Typ./Max.)	Signal Interface	LVDS (2 ch, 8-bit)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	UJU	IS100-L30O-C23	1 pcs	1.0 mm	30 pins	LVDS-30P2C8B-160A

LG Display LM238WF1-SLE3 Lightting Details

Lamp Features:	Lamp Shape	3 strings	Lamp Type	WLED	Position	Edge light type (Bottom side)
Lamp Features:	Exchange	-	Amount	18S3P	Life	30K(Min.) (Hours)
Lamp Electrical :	Input Current	75/80mA (Typ./Max.)		Input Voltage	55.3±3.6V
Lamp Electrical :	Consumption	12.4/13.2W (Typ./Max.)
Interface Features :	Position		Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	LS Mtron	GT108-6P-H26(HF)	1 pcs	1.0 mm	6 pins	BLE-6PINS-CNAACC
Backlight Driver :	No

LG Display LM238WF1-SLE3 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	12 pcs / box	635×370×400 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
