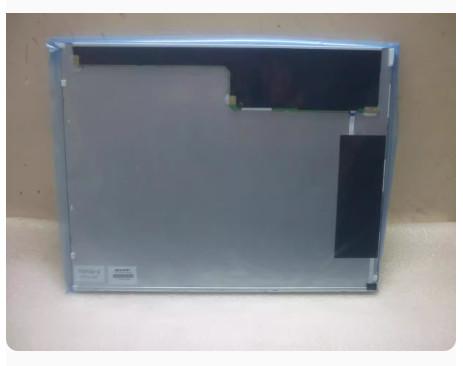

LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024, SXGA 96PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024, SXGA 96PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LB170E01-SL01
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LB170E01-SL01 LG Display 17.0" 1280(RGB)×1024, SXGA 96PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LB170E01-SL01 Mechanical Features

Screen Size :	17.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1280(RGB)×1024, SXGA	RGB Vertical Stripe	0.088×0.264 mm	0.264×0.264 mm [96PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	337.92×270.336 mm	341.5×274.6 mm	368×306 mm	10/14.8 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	5:4	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	1.26Kgs (Typ.)	-	Antiglare, Hard coating (3H)
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel

LG Display LB170E01-SL01 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	400 cd/m² (Typ.)	IPS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Typ.)(CR≥10)	14 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6568K	16.7M (8-bit)	X:0.310; Y:0.338
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	93%	72%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.33 (Max.)(9 points)

LG Display LB170E01-SL01 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type (Bottom side)	50K(Min.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	YEONHO	10031HR-H06	1 pcs	6 pins	1.0 mm
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	12.0±0.5V		1.05/1.16A (Typ./Max.)			12.6/13.86W (Typ./Max.)

LG Display LB170E01-SL01 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	5.0V (Typ.)		520/676mA (Typ./Max.)			2.6/3.38W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (2 ch, 8-bit)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	LS Mtron	GT103-30S-H23	1 pcs	30 pins	1.0 mm	LVDS-30P2C8B-160A

LG Display LB170E01-SL01 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		LB170E01-SL01	a-Si TFT-LCD , LCM	LB170E01 (SL)(01)
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-10 ~ 70 °C	-20 ~ 80 °C	-
Application :
Typical Features :

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 337.92(W)×270.336(H) mm, outline size of 368(W)×306(H)×14.8(D) mm, viewing area size of 341.5(W)×274.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.26Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LB170E01-SL01 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. LB170E01-SL01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LB170E01-SL01 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
