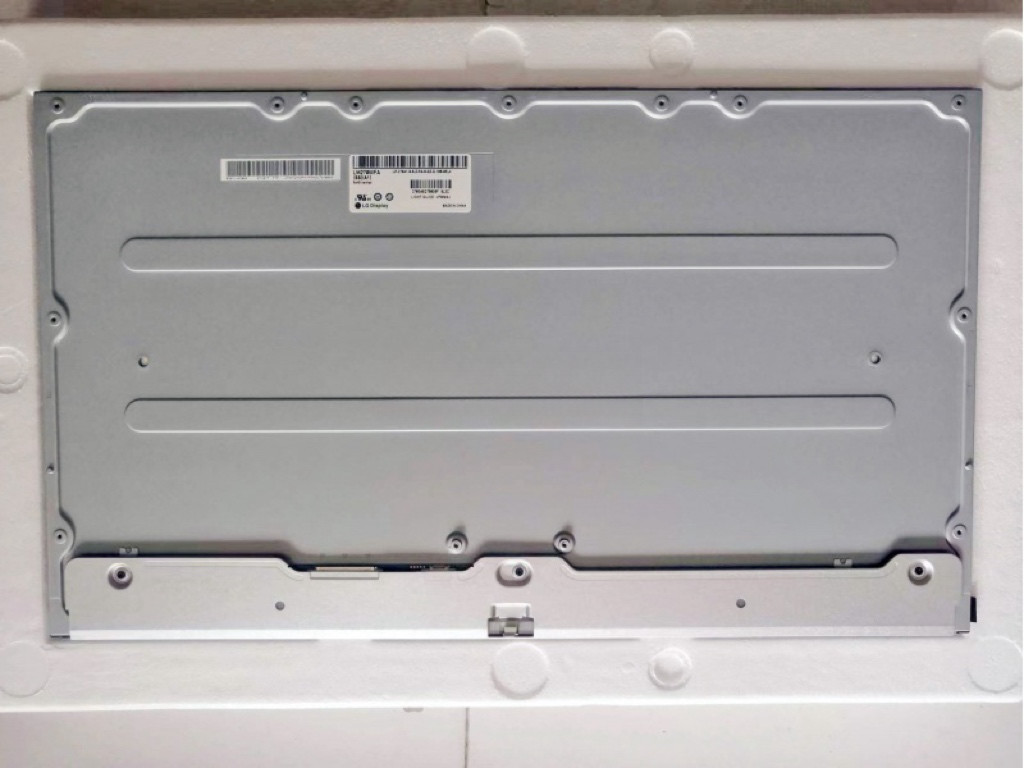

LM270WFA-SSA2 LG Display 27.0"1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LM270WFA-SSA2
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LM270WFA-SSA2 LG Display 27.0"1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

L Display LM270WFA-SSA2 Mechanical Details

Pixel Features :

Number of Pixel

1920(RGB)×1080, FHD

Arrangement

RGB Vertical Stripe

Dot Pitch(W×H)

0.1038×0.3114 mm

Pixel Pitch(W×H)

0.3114×0.3114 mm [81PPI]

Physical Size :

Active Viewing

597.888(W)×336.312(H) mm

Overall Dim.

607.1(W)×354.1(H) mm

Bezel Opening

Overall Depth

8.7/12.66 (Typ./Max.) mm

Outline Features :

Form Shape

Flat Rectangle

Orientation

Landscape type

Aspect Ratio(W:H)

16:9

Shape Style

3-side borderless

Touchscreen :

TP Controller

With controller

Control Signal

USB

Touch Points

10 points

TP Technology

In-Cell Touch

Fixation :

Rear mounting holes

Other Detail :

Mass

3.15/3.31Kgs (Typ./Max.)

Surface

Antiglare (Haze 25%), Hard coating (3H)

LG Display LM270WFA-SSA2 Optical Details

Basic Information :

Luminance

300 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (Transmissive)

Good View at

Symmetry

Response Speed

14 (Typ.)(G to G) ms

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Operating Mode

IPS, Normally Black, Transmissive

Color Performance :

Chromaticity

Wx:0.313; Wy:0.329

Support Color

16.7M (6-bit + Hi-FRC)

Color Temperature

6485K

White Variation

1.33 (Max.)(9 points)

1931 Color Gamut :

NTSC Ratio

79%

sRGB

100% coverage

Adobe RGB

78% coverage

DCI-P3

82% coverage

Rec.2020

59% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM270WFA-SSA2 Interface Details

Signal Electrical :

Input Current

531/807mA (Typ./Max.)(60Hz)

Input Voltage

5.0V (Typ.)

Consumption

2.66/4.03W (Typ./Max.)

Signal Interface

LVDS (2 ch, 8-bit)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

UJU

IS100-L30O-C23

1.0 mm

30 pins

1 pcs

LVDS-30P2C8B-160B

LG Display LM270WFA-SSA2 Lightting Details

Lamp Features :

Lamp Type

WLED

Amount

Position

Edge light type

Exchange

Lamp Shape

Lamp Life

30K(Min.) (Hours)

Lamp Electrical :

Input Voltage

45.3±3.2

Input Current

85/90mA (Typ./Max.)

Consumption

15.4/16.5W W (Typ./Max.)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

JST

BM06B-SHJS-TB(HF)

1.0 mm

6 pins

1 pcs

BLE-6PINS-CCAACC

Backlight Driver :

LG Display LM270WFA-SSA2 Application Details

Basic Detail :

Manufacturer

Model Name

LM270WFA-SSA2

Panel Type

a-Si TFT-LCD , LCM

Another Name

LM270WFA (SS)(A2)

Panel Size

27.0 inch

Designed For

Maximum Ratings :

OP Temperature

0 ~ 50 °C

ST Temperature

-20 ~ 60 °C

RoHS

Vibration Level

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.1(W)×354.1(H)×12.66(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.15/3.31Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WFA-SSA2 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WFA-SSA2 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz. For more latest product detail of LM270WFA-SSA2 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

Features :
