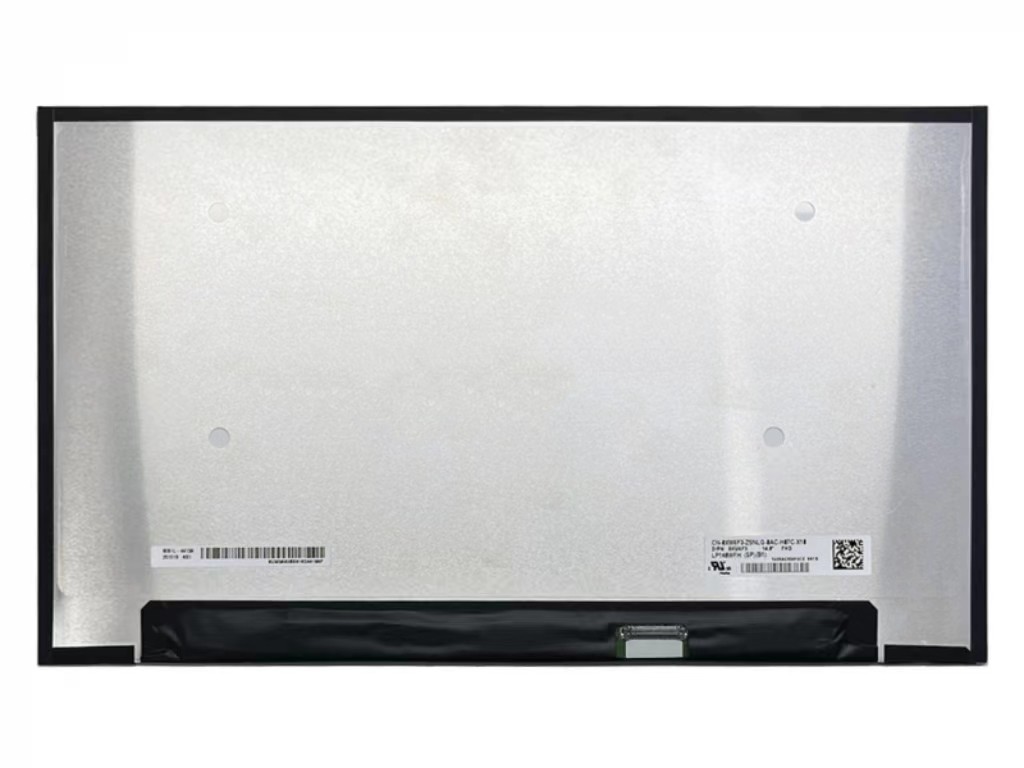

LP140UD2-SPB1 LG Display 14" 3840(RGB)×2160, UHD , 400 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LP140UD2-SPB1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	300PCS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LP140UD2-SPB1 LG Display 14" 3840(RGB)×2160, UHD , 400 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LP140UD2-SPB1 Mechanical Details

Pixel Features :	Resolution	3840(RGB)×2160, UHD	Dot Pitch(mm)	0.05984×0.17952 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.17952×0.17952 (H×V) [141PPI]
Mechanical Size :	Active Area(mm)	344.68(H) × 215.42(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	349.68(H) × 225.32(V)	Depth(mm)	2.85/5.0 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Slim (PCBA Bent, T≤3.0mm)
Outline Features :	Aspect Ratio	16:10 (H:V)	Orientation	Landscape type
Mounting :	Without
Other Spec :	Weight	400g (Max.)	Treatment	Antiglare

LG Display LP140UD2-SPB1 Optical Details

Basic Information :	Luminance(cd/m²)	250 (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	IPS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.5 3(Max.)(5/13 points)
1931 Color Gamut :	NTSC Ratio	45%	sRGB	63% coverage
	Adobe RGB	47% coverage	DCI-P3	47% coverage
	Rec.2020	34% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP140UD2-SPB1 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	204/221mA (Typ./Max.)
Signal Electrical :	Consumption	0.67/0.73W (Typ./Max.)
Signal Type :	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	I-PEX	20696-030E-02	1 pcs	30 pins	0.4 mm	EDP-30P2L-020I

LG Display LP140UD2-SPB1 Backlight Details

Backlight Features:	Shape	-	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	-	Life Time	15K(Min.) (Hours)
Interface Features :	Position	-		Type	Included in signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply	5.0/12.0/20.0V (Min./Typ./Max.)		Current Supply	250/258mA (Typ./Max.)
Driver Electrical :	Consumption	3.00/3.10W (Typ./Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 307.29(W)×199.25(H)×5(D) mm, with surface treament of Antiglare, net weight of 300g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP140WU2-SPB1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP140WU2-SPB1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP140WU2-SPB1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
