Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
	WLED	Edge light type (Bottom side)	16S4P	4 strings	30K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
	44.3±3.2V		45/50mA (Typ./Max.)			8.0/8.6W (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
		No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
		BM06B-SHJS(HF)	1.0 mm	6 pins	1 pcs	BLE-6PINS-CCAACC

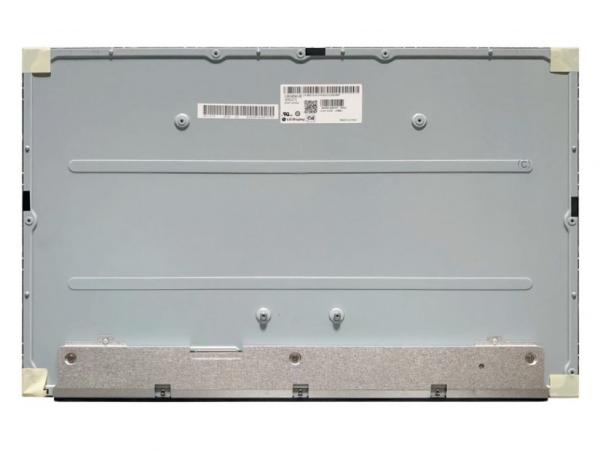

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, outline size of 528.2(W)×342.6(H)×13.5(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.45/2.60Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM240WUA-SSB1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 16S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM240WUA-SSB1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM240WUA-SSB1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
