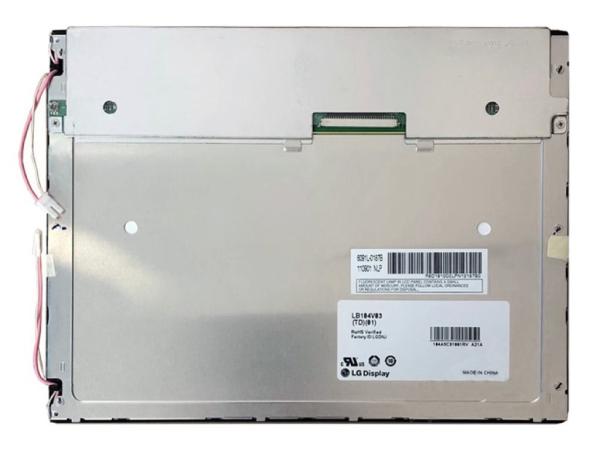

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 236(W)×180(H)×10.5(D) mm, viewing area size of 215.6(W)×163.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 490g (Max.). As a TN, Normally White, Transmissive LCM product, LB104V03-TD01 can provides 400 cd/m² display brightness 300:1 transimissive contrast ratio, 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 40K hours, external backlight driver is additionally needed. LB104V03-TD01 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LB104V03-TD01 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
