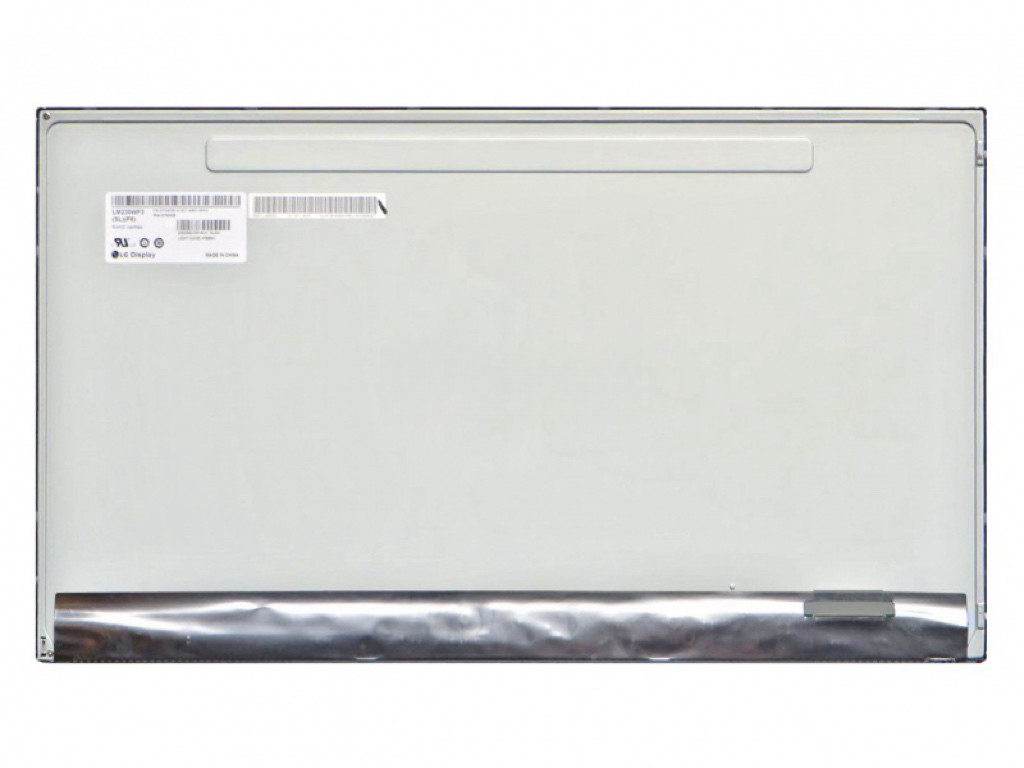

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 543(W)×317.4(H)×11.7(D) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.00/2.10Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM238WF1-SLM1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 18S2P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM238WF1-SLM1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz. For more latest product detail of LM238WF1-SLM1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.

Sapientia Display Co.,LIMITED is a professional leading company for LCD panels in China and Hong Kong China,established in year 2015, strong at collecting OEM excess stock from world famous big OEM factories, with experienced sourcing and sales and QC team, we can offer most competitive price with qualified panels.

Main products widely used for industrial facilities display, medical machine display, automotive display system, advertisement display and other portable display. We have our own warehouses which located in HK, SHENZHEN, HUIZHOU and HANGZHOU cities, with huge inventories of world famous brands LCD panels such as NEC, AUO, SHARP, LG, TIANMA, HITACHI, MITSUBISHI, TOSHIBA, SAMSUNG.

Panel size from 0.96 inch to 55inch, most panels packed in new original, factory box packing, panels been well kept in good status in our professional warehouses, engineering teams can support professional techique supports for lighting on panels, offering suitable cables/inverters/driving boards and other relative accessories.

Sapientia display will be your best choice for LCD panels, contact us for WIN-WIN business!
