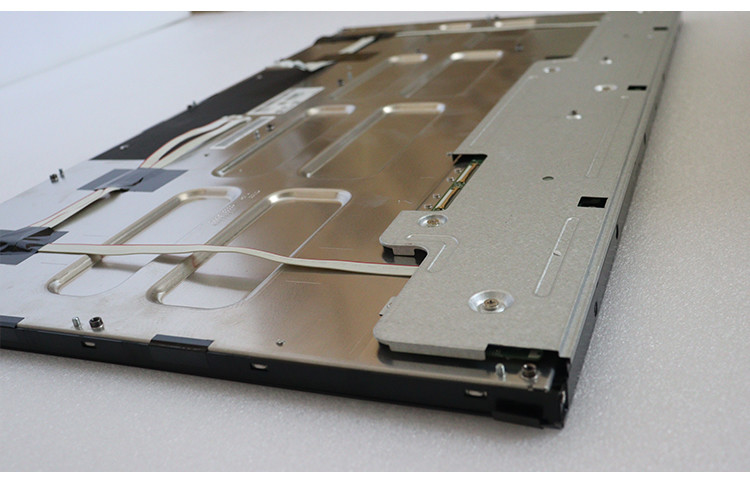

LM340UW1-SSA1 LG Display 34" 3440(RGB)×1440 109PPI, 320 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LM340UW1-SSA1 Mechanical Features

Screen Size :	34"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	3440(RGB)×1440	RGB Vertical Stripe	0.0775×0.2535 mm	0.2325×0.2325 mm [109PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	799.8×334.8 mm	-	820.8×361 mm	11.8/19.8 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	21:9	Landscape type	3-side borderless
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	3.71/3.90Kgs (Typ./Max.)	-	Antiglare, Hard coating (3H)
Holes & Brackets :	Rear mounting poles (13-M3)

LG Display LM340UW1-SSA1 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	320 cd/m² (Typ.)	IPS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Typ.)(CR≥10)	14 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	1.07B (8-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	77%	100%	78%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	80%	57%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.33 (Max.)(9 points)

LG Display LM340UW1-SSA1 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	30K(Min.)	12S4P	4 strings	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	36.6±2.4V		120/125mA (Typ./Max.)			35.1/37.5W (Typ./Max.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Connector
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	JST	SM06B-SHJH(HF)	2 pcs	6 pins	1.0 mm	BLE-6PINS-CCAACC

LG Display LM340UW1-SSA1 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	10.0V (Typ.)		0.8/1.0A (Typ./Max.)			9.7/12.2W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (8 ch, 10-bit)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
	UJU	IS050-C51B-C39-S	1 pcs	51 pins	0.5 mm
	UJU	IS050-C41B-C39-S	3 pcs	41 pins	0.5 mm

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 799.8(W)×334.8(H) mm, outline size of 820.8(W)×361(H)×19.8(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.71/3.90Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM340UW1-SSA1 can provides 320 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM340UW1-SSA1 utilizes LVDS (8 ch, 10-bit) as it's signal inputting systerm, which connected by 174 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM340UW1-SSA1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
